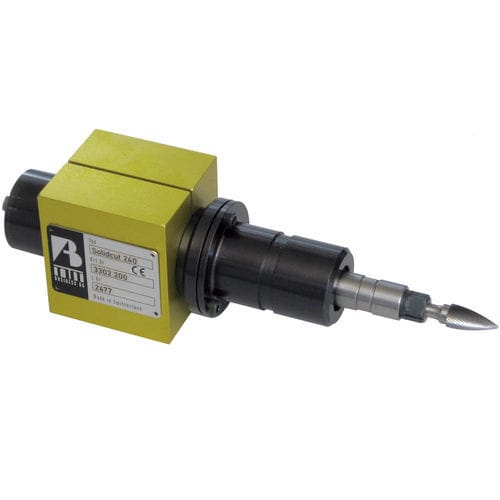

Milling spindle Solidcut 240deburringmachiningfor robots
Add to favorites
Compare this product
Characteristics
- Function
- milling, deburring, machining
- Other characteristics
- for robots, air-driven
- Rotational speed
Max.: 35,000 rpm
(219,911.49 rad.min-1)Min.: 17,500 rpm
(109,955.74 rad.min-1)- Diameter
Max.: 6 mm
(0.2 in)Min.: 0 mm
(0 in)
Description
The milling tool SOLIDCUT 240 can be used for the economical machining, deburring and deflashing of metallic as well as nonmetallic parts. It allows high feed rates with an uniform quality. It is specially suitable for pre-milling at deflashing applications.
Article-No.
3302.205
Power
240 W (0.32 hp)
Idling speed
35'000 rpm
Rated speed
17'500 rpm
Feed forward rate
5 - 250 mm/sec.
Air consumption
7.5 l/s (15.9 cfm)
Collet
Ø 6 mm
Weight
1.5 kg (3.3 lb)
Catalogs
Solidcut 240
2 Pages
