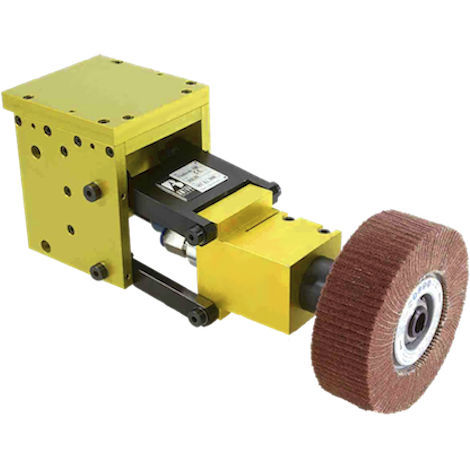

Finishing spindle Finishtool 200

for polishingfor grindingradial

The finishing tools FINISHTOOL SERIES 200 can be used for surface finishing with radial wheels such as grinding and polishing of almost any material. The compliance is effected by a parallelogram mechanism that assures that the movement is parallel and that the tool angle does not change. The wear of the wheel is monitored by a sensor and compensated by program control. Type FINISHTOOL 220 FINISHTOOL 221 FINISHTOOL 225 FINISHTOOL 231 FINISHTOOL 233 Article-No. 3076.210 3076.211 3076.215 3076.231 3076.233 Power 840 W 840 W 840 W 620 W 620 W Idling speed 2'500 rpm 4'200 rpm 6'700 rpm 3'550 rpm (r) 5'250 rpm (r) Rated speed 1'280 rpm 2'100 rpm 3'300 rpm 1'700 rpm (r) 2'650 rpm (r) Compliance movement 34 mm (radial) 34 mm (radial) 34 mm (radial) 34 mm (radial) 34 mm (radial) Compliance force * at 6 bar approx. 140 N approx. 140 N approx. 140 N approx. 140 N approx. 140 N Feed forward rate 50 - 200 mm/s 50 - 200 mm/s 50 - 200 mm/s 50 - 200 mm/s 50 - 200 mm/s Air consumotion 17 l/s 17 l/s 17 l/s 14.5 l/s 14.5 l/s Motor shaft Ø16 x 40 mm Ø16 x 40 mm Ø16 x 40 mm Ø16 x 40 mm Ø16 x 40 mm Wheel diameter 100 - 250 mm 100 - 250 mm 100 - 250 mm 100 - 250 mm 100 - 250 mm Weight 7 kg 7 kg 7 kg 7 kg 7 kg
