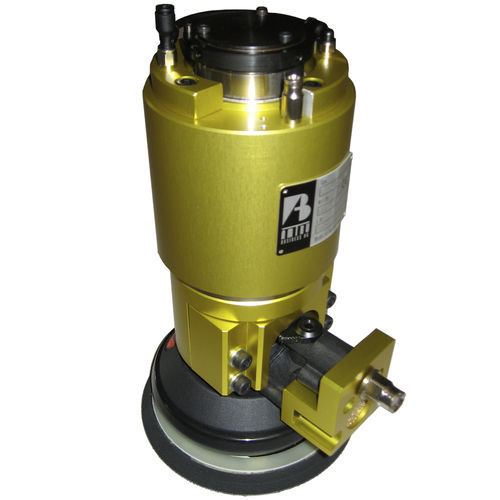

The grinding tools FLEXORBITAL SERIES 100 can be used for surface finishing of almost any material. The spindle is axially compliable while the necessary pressure is monitored by program control. The weight is compensated by two integrated springs.
Type
FLEXORBITAL 120
FLEXORBITAL 150
Article-No.
3039.200
3039.250
Power
186 W
336 W
Idling speed
12'000 rpm
12'000 rpm
Orbital diameter
5 mm (3/16
5 mm (3/16
Compliance movement (axial)
14 mm
14 mm
Compliance force at 6 bar
approx. 60 N
approx. 60 N
Feed forward rate
5 - 100 mm/s
5 - 100 mm/s
Air consumption
6.6 l/s
11 l/s
Wheel diameter
73 - 116 mm
73 - 152 mm
Weight
3.5 kg
4 kg
