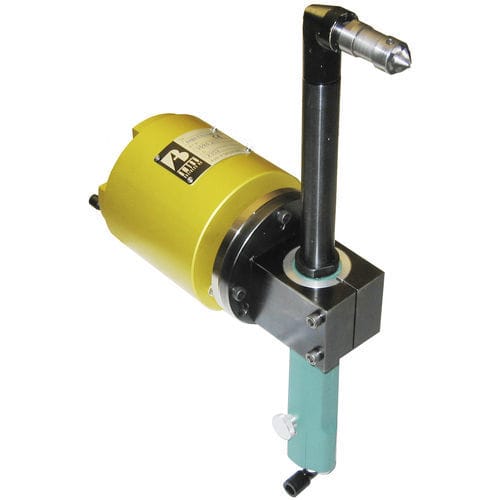

Chamfering spindle Angle-Flexicham 110for countersinkingair-driven
Add to favorites
Compare this product
Characteristics
- Function
- chamfering, for countersinking
- Other characteristics
- air-driven
- Rotational speed
500 rpm
(3,141.59 rad.min-1)- Diameter
8 mm
(0.3 in)
Description
The angle countersink tool ANGLE-FLEXICHAM 110 is being used to countersink holes in metallic as well as nonmetallic parts. It is particularly well suited to work in badly accessible areas. The countersink spindle is axially movable. The necessary feed forward force can be set by the program control. The countersink tip is freely compliable in all directions thanks to its flexible tool mount (flex coupling).
Type
ANGLE-FLEXICHAM 110
Article-No.
3096.210
Power
80 W
Speed
500 rpm
Compliance movement (axial)
12 mm
Compliance force at 6 bar
approx. 60 N
Air consumption
5 l/s
Cutter
90° / Ø12.4 mm
Tool insert mounting
Ø8 mm
Weight
3.4 kg
