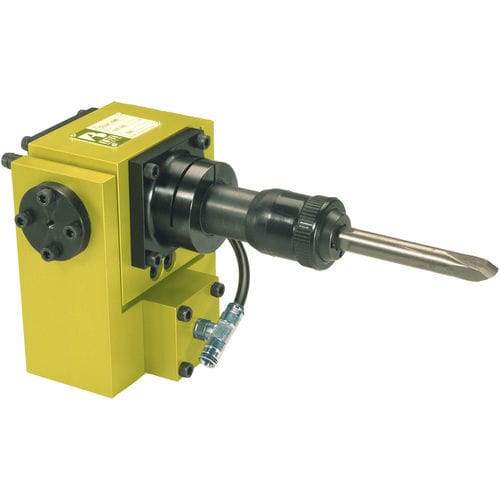

Pneumatic chipping hammer Chisel 4380

for installationhorizontal

The chipping hammer CHISEL 4380 is well suited to remove burrs and flashes of mould parting lines particularly in openings, slots and grooves. It is well suited for the deflashing of parts made of gray cast iron- and aluminium-casting. It can be employed in any orientation. The chisel tip is compliable in two directions. The pressure against the part can be set from the robot program. Article-No. 1015.200 Strokes per min 4'380 Energy per blow 1.4 J Compliance pendulous in two directions ± 3.8° / ± 17 mm (at chisel) Compliance torque 16.6 Nm Compliance force at 6 bar 62 N at chisel Feed forward rate 5 - 150 mm/s Air consumption 4 l/s Chisel fixation Square shaft 13 mm Weight 7.4 kg
