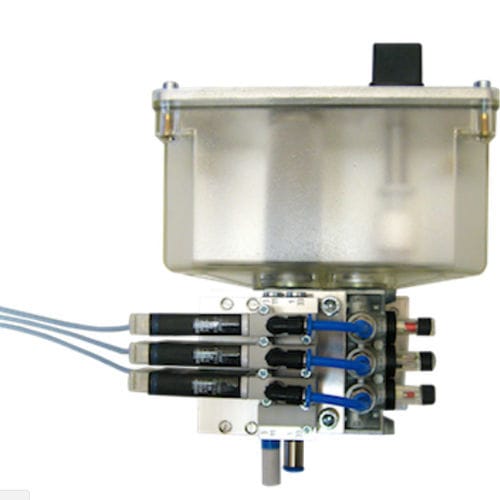

In principle, the Directoiler is an air-operated piston pump that supplies small controlled amounts of lubricant. The Directoiler is used for controlled oiling of compressed air. The lubricant will be sucked in from a container directly connected to the Directoiler and will be supplied via a line to the mixing valve.
Type
DIRECTOILER 01
DIRECTOILER 11
DIRECTOILER 03
DIRECTOILER 13
Article-No.
1126.201
1126.211
1126.203
1126.213
Number of lubrication points (Tools)
1
1
3
3
Adjustable supply quantity
3 - 30 mm3 / stroke
3 - 30 mm3 / stroke
3 - 30 mm3 / stroke
3 - 30 mm3 / stroke
Incl. actuation valves
0
1 x (24 VDC)
0
3 x (24 VDC)
Actuator medium
Compressed air 3 - 7 bar
Compressed air 3 - 7 bar
Compressed air 3 - 7 bar
Compressed air 3 - 7 bar
Lubricant
Oil on mineral or synthetic basis
Oil on mineral or synthetic basis
Oil on mineral or synthetic basis
Oil on mineral or synthetic basis
Operational viscosity
10 - 1100 mm2/s
10 - 1100 mm2/s
10 - 1100 mm2/s
10 - 1100 mm2/s
Container volume
1 Litre
1 Litre
1 Litre
1 Litre
Mixing valve 1/4
incl. 1 pc
incl. 1 pc
incl. 3 pcs
incl. 3 pcs
Length of polyamide tube
1 x 5 m
1 x 5 m
3 x 5 m
3 x 5 m
Level monitoring
electrical
electrical
electrical
electrical
Weight
1 kg
1 kg
1.5 kg
1.5 kg
