Protection conduit ANAFLEX series
corrugatedfor electrical cablesstainless steel

protection conduit
protection conduit
protection conduit
Add to favorites
Compare this product


Characteristics

Type
protection
Structure
corrugated
Applications
for electrical cables
Material
stainless steel
Protection level
IP67
Other characteristics
flexible
Diameter

12 mm, 16 mm, 20 mm, 25 mm
(0.5 in, 0.6 in, 0.8 in, 1 in)

Temperature

Min.: -75 °C
(-103 °F)

Max.: 250 °C
(482 °F)

Description

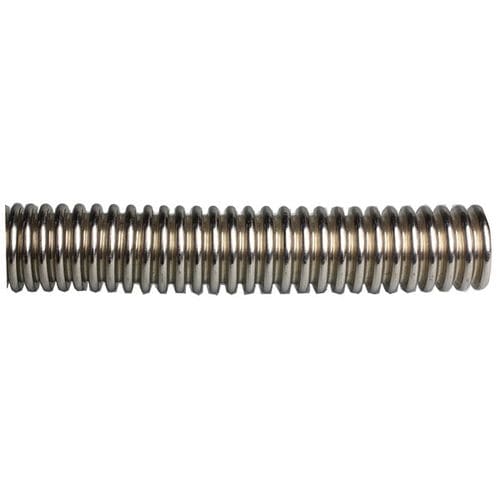

The Anafl ex click system consists of a highy quality flexible stainless steel AISI-316L hose with a nickel plated brass Anaflex Click fitting. The IP69 system retain it's liquid tight rating up to +250° C. The Anaflex System is designed to resist oils, greases and solvents and because the system has no plastic parts fire, smoke and toxicity will not be an issue. The Anaflex system was initially designed as a self-mounting flexible piping system for HVAC installations but due to its continuous profi led tube it is also suitable for protecting cables, especially in applications where EMI/EMP shielding is required. These featuresmake Anaflex System suitable for use in electrical and non-electrical applications in the subway-, train- and bus buiding industry, in closed areas such as tunnels and underground.
