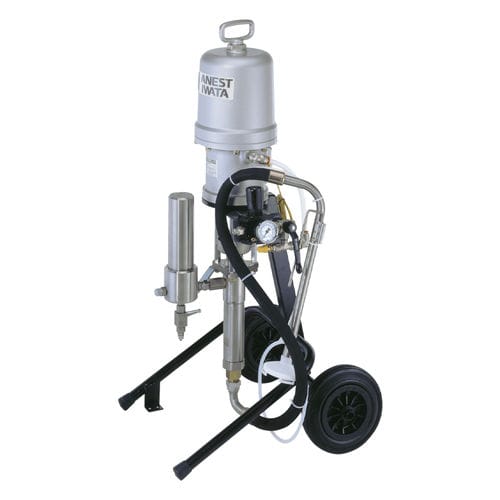

Paint pump ALS series
electricairlessmobile

Add to favorites

Compare this product

Go to the Anest Iwata website for more information

Characteristics

Fluid

paint

Operation

electric

Technology

airless

Mobility

mobile

Applications

high-pressure

Fluid specification

for low-viscosity fluids, for medium-viscosity products, for high-viscosity fluids

Flow

2 l/min, 2.5 l/min, 5 l/min
(0.52834 us gal/min, 0.66043 us gal/min, 1.32086 us gal/min)

Pressure

6.8 bar
(98.626 psi)

Power

0.75 kW, 1.5 kW
(1.02 hp, 2.04 hp)

Fluid temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Length

500 mm
(20 in)

Width

500 mm
(19.69 in)

Height

900 mm, 970 mm
(35.43 in, 38.19 in)

Weight

23 kg, 30 kg, 35 kg
(50.71 lb, 66.14 lb, 77.16 lb)

Description

Airless systems atomize paint by forcing it through a small orifice, called 'nozzle tip', at high pressure. This results in less overspray and sprayback, giving a less waste of paint and a better working environment. Airless Pumps are availble in 3 different versions. Airless systems atomize paint by forcing it through a small orifice, called 'nozzle tip', at high pressure. This results in less overspray and sprayback, giving a less waste of paint and a better working environment. Airless Pumps are availble in 3 different versions. The TX models are specific for waterborne and thixopropic paints and high viscosity materials. Available as 423-TX and 433-TX with pressure ratios from 23:1 up to 30:1. The KE versions represent the high pressure versions of the ALS series consisting of the 653KE with a ratio of 45:1 and the ALS 663KE with a ratio of 63:1. Features & Highlights Low overspray Fast Coating Speeds Better Working Environment
