ACS thermal shock chambers stand out for their utmost flexibility. Available in several versions to better suit different testing needs.
They may be broadly divided into:

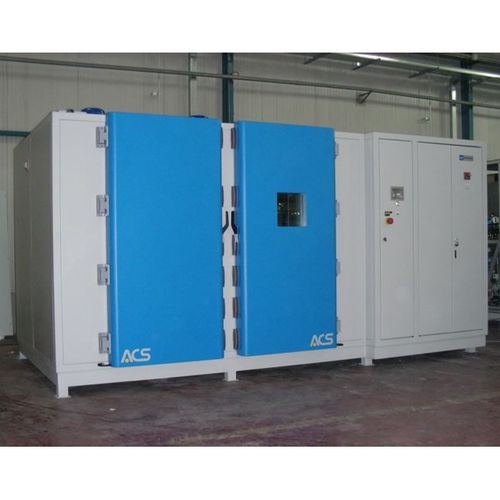

➣ CST Series: Air-to- air thermal shock chambers, horizontal or vertical chambers with 2 compartments corresponding to 2 different temperature levels (hot, ambient temperature, cold). 320, 500 and 1000 l models are available.
➣ CSTL Series: Liquid-to-liquid thermal shock chambers, available with 12 or 20 l basket.
The PLC-based control system consists of a user's interface with keyboard and display and allows pre-defined test cycles to be automatically run.
FEATURES:
• Basket transfer time from one compartment to another less than 10 seconds.
• Fast recovery and stabilization times during hot-cold and cold-hot transfers, thanks to low thermal inertia and to the absence of radiating heat inside the chamber.
• High response speed and linearity in the -100° C/+200° C range, thanks to a powerful thermoregulation system.
• Doors equipped with a special automatic system blocking the running test at door opening.
• Recirculation system ensuring a perfect air distribution inside the chamber.
• Low liquid consumption on CSTL models (0.5 g/h for CSTL20)
