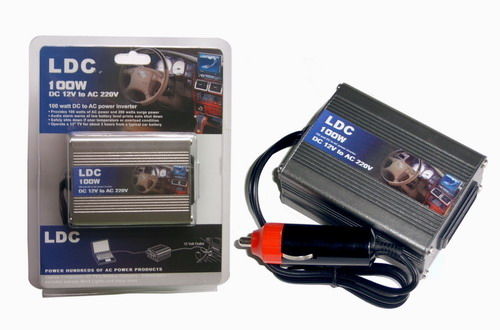

DC / AC inverter controller
100 W
Anhui Talema electronics
Special Feature
Maximum continuous power 100 Watts
Surge capacity (peak power) 200 Watts
Maximum efficiency approx. 90%
Input voltage range 10-15V DC (12VDC)
Under voltage shutdown activation 10.0 Volts
Over voltage shutdown activation 15.0 Volts
Wave form modified sine wave
Input DC voltage could be either 12V or 24V
Output AC voltage can be customer-made according to different countries 110VAC/220VAC/240VAC
Overload protection
Cigarette lighter plug
Thermal protection:65±5 degrees Celsius
The parameter you are reading now is based on DC 12V input
Measurement: 90×62×38 (mm)
Weight:0.23kgs
Maximum continuous power 100 Watts
Surge capacity (peak power) 200 Watts
Maximum efficiency approx. 90%
Input voltage range 10-15V DC (12VDC)
Under voltage shutdown activation 10.0 Volts
Over voltage shutdown activation 15.0 Volts
Wave form modified sine wave
Input DC voltage could be either 12V or 24V
Output AC voltage can be customer-made according to different countries 110VAC/220VAC/240VAC
Overload protection
Cigarette lighter plug
Thermal protection:65±5 degrees Celsius
The parameter you are reading now is based on DC 12V input
Measurement: 90×62×38 (mm)
Weight:0.23kgs
