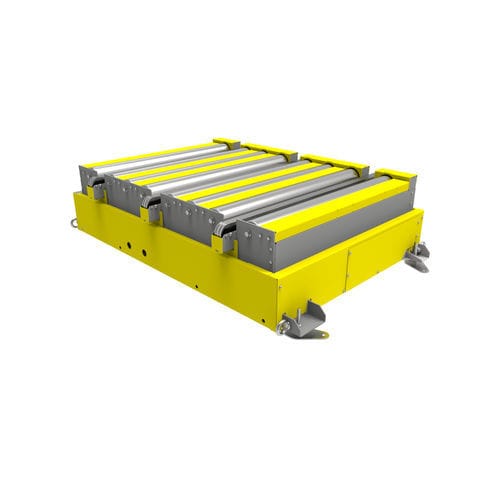

Pallet transfer system
modular

pallet transfer system
pallet transfer system
Add to favorites
Compare this product


Characteristics

Product applications
for pallet
Type
modular
Capacity

1,500 kg
(3,306.9 lb)

Description

PALLET HANDLING SINGLE LEVEL TRANSFER Structure        S235JR steel, powder coated RAL 9006 / RAL 1021. Top-Of-Roller, Top-Of-Chain Height        450 mm to 600 mm with ± 15 mm mechanical adjustment. Maximum Load        1,500 kg / 3,300 lb uniformly distributed. Roller Conveyor Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Roller Conveyor Speed        12 m/min / 39.37 ft/min. Chain Conveyor Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Chain Conveyor Speed        12 m/min / 39.37 ft/min. Distance Between Strands        460 mm, 475 mm, and 525 mm. Vertical Movement Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Lifting Time        Approx. 4 sec. Load / Pallet Travel        Bidirectional on the roller and chain conveyors. Limit Sensors        Sick IME12. Sensors included. Electrical Connections        Prewired chain motor, lift motor and sensors to junction box. Operating Temp.        5°C to 50°C / 41°F to 122°F.

Catalogs

No catalogs are available for this product.

See all of ANTIPODA, LDA‘s catalogs
