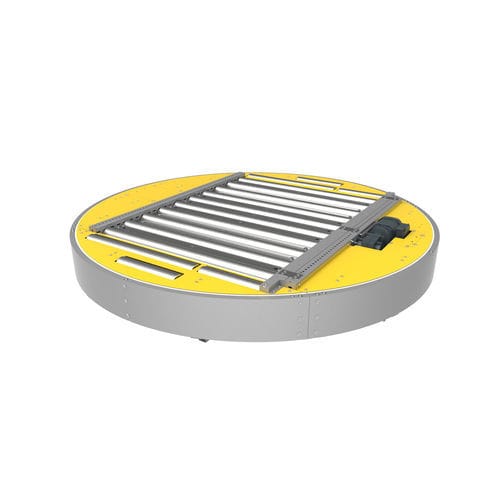

Motor-driven turntable
horizontalrotatingwith roller conveyor

motor-driven turntable
motor-driven turntable
motor-driven turntable
Add to favorites
Compare this product


Characteristics

Operation
motor-driven
Configuration
horizontal
Other characteristics
rotating, with roller conveyor
Diameter

Min.: 2,168 mm
(85 in)

Max.: 2,368 mm
(93 in)

Description

PALLET HANDLING TURNTABLE Structure        S235JR steel, powder coated RAL 9006 / RAL 1021. Security side cover        Optional, powder coated RAL 1021. Height        350 mm up to 600 mm TOR (top-of-roller) with +50 mm adjustment. Roller pitch        150 mm. Roller Conveyor Gearmotor Drive        SEW Gearmotor 0.37kW / 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 0.37kW / 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 0.37kW / 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Roller Conveyor Speed        12 m/min / 39.37 ft/min. Turntable Rotation Gearmotor Drive        SEW Gearmotor 0.37kW / 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 0.37kW / 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 0.37kW / 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Turntable Rotation Speed        2,6 rot/min. Direction        CW and CCW. Stop Position        -90° to +90°. Installation        Horizontal application only. Sensors        Supports compatible with Sick IME18 included. Sensors included. Electrical Connections        Prewired roller motor and sensors to junction box. Operating Temp.        5°C to 50°C / 41°F to 122°F.
