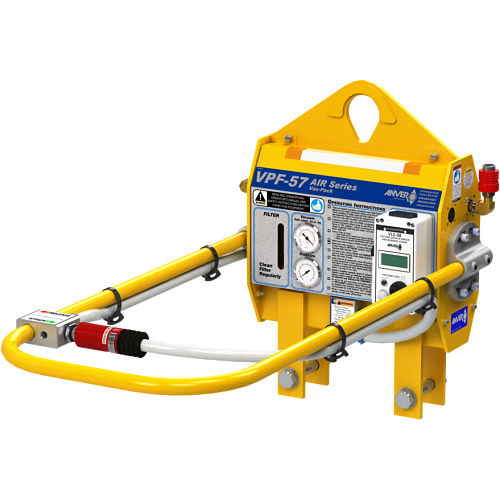

Dry vacuum unit VPF-57 series
industrialminipneumatic

dry vacuum unit
dry vacuum unit
dry vacuum unit
Add to favorites
Compare this product


Characteristics

Configuration
dry
Applications
industrial
Other characteristics
pneumatic, mini

Description

ANVER’s latest models of vacuum generators feature high capacity pumps, valves, filters and gauges for trouble-free operation in the most demanding production environments. Designed for use with a wide assortment of vacuum lifter assemblies and interchangeable pad attachments, these high quality Vac-Packs are ruggedly built, yet affordably priced for unmatched value. The VPF-57-AIR Series features a sturdy welded frame construction for heavy weight load lifting capability. • Air Powered Vacuum Generator No electric power required, operates using dry, clean compressed air for vacuum generation. The vacuum generator is a single stage unit with no moving parts or rubber gaskets to maintain or replace. • Takes Standard Dry, Clean Shop Air Input pressure to be regulated to 90 psi (72.5 psi on VPF-57/30-AIR). Provided with 3/8” NPT • Energy Air Saver Vacuum Generator: The vacuum controlled valve shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimized. (Not available on VPF-57/-30-AIR) • Vacuum Leakage Sensor and Warning System The VLS is a battery powered unit consisting of solid state circuitry with microprocessor, pressure sensor, LCD digital display in inches of Hg, and audible and visual warning signs (horn and red light). System is plumbed to the Vac-Pack and monitors vacuum level triggering the alarm in the event of a leakage in vacuum level (10% leakage for VLS / 20% leakage for VLS-20).
