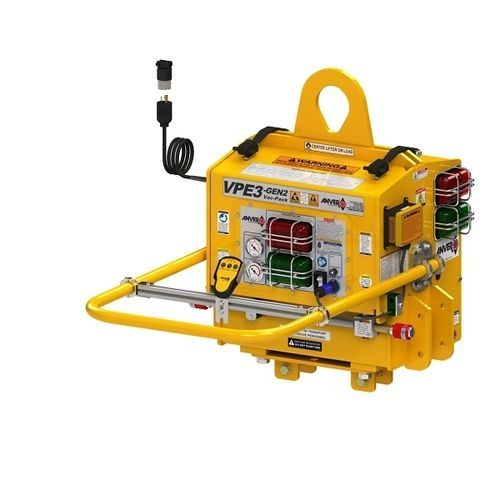

Vacuum station VPE3-GEN2 series

vacuum station
vacuum station
Add to favorites
Compare this product


Description

ANVER’s VPE3-GEN2 Series Vac-Packs are suitable for handling non-porous to semi-porous loads. Designed for use with a wide assortment of vacuum pad attachments and lifter assemblies, these high quality Vac-Packs are ruggedly designed for heavy production use. Units are available with heavy duty frames or for mounting remotely. • Load Sensing Lifting Bail with Safety Lock-Out Pendant controls are only active when the lifter is lowered completely and there is no load on the bail. This eliminates the risk of accidental release of a suspended load by the operator. (Feature not present on the VPE3-GEN2-RD Series, which is a standalone version, or the VPE3-GEN2-T Series, which is a tilter version.) • Vacuum Control Module A solid-state Vacuum Control Module combines all the required vacuum generator controls in one rugged unit. This controls all vacuum pump functions, safety lights, and is fitted with a standard audible vacuum leakage warning system. • Audible Vacuum Leakage Warning System Integrated electronically controlled vacuum leakage sensor monitors vacuum level and will sound an alarm if a slow vacuum leak is present and the vacuum level drops to a predetermined set point. • Vacuum Retention The system includes an internal check valve to stop leakage of vacuum in the event of a power failure (non-porous loads). A 5.4 gallon (1247 cu. in.) vacuum reservoir assists in maintaining a safe vacuum level during a power failure (non-porous loads).
