sheet metal vacuum lifting device / horizontal
L M14 series ANVER Vacuum System Specialists

{{requestButtons}}

Characteristics

  • Product applications:

    for sheet metal

  • Options:

    horizontal

  • Number of cups:

    14 unit

  • Carrying capacity:

    Min.: 1,588 kg (3,501 lb)

    Max.: 9,525 kg (20,999 lb)

Description

ANVER’S standard lifting frames are built to order using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms and vacuum cups selected.

ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements.

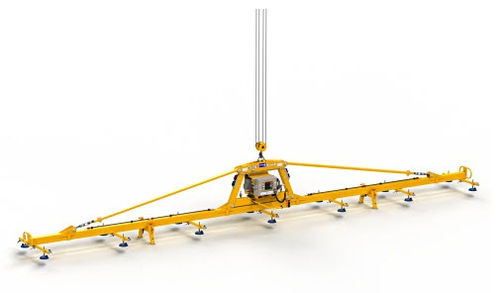

The LG350M14-Series fourteen-pad lifting frames are ideal for handling carbon steel and stainless steel sheets, plates and non-ferrous materials like aluminum with a capacity up to 3500 lb (1588 kg). The type of vacuum lifter – Mechanical, Electric or Battery – paired with the number of pads used will depend on your application needs.

Lifting frame shown with vacuum generator and/or optional accessories, which are sold separately. Unit weight does not include vacuum generator or optional equipment (Parking Stands, etc). To calculate total unit weight, add the compatible generator weight to the lifting frame weight and deduct it from crane capacity.

NOTE: Additional crossarm lengths available for handling wider load sizes. Contact ANVER Application Engineers for more information.
