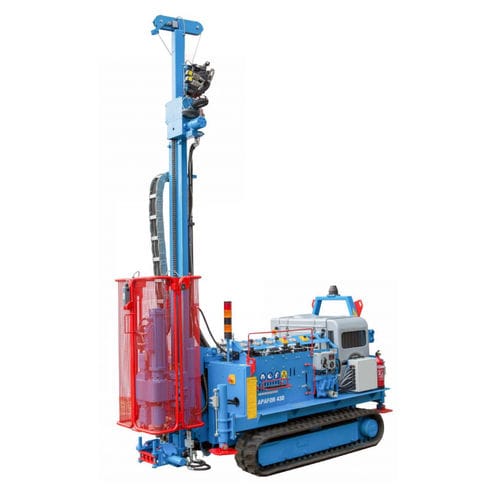

Core drilling drilling rig APAFOR® 430

geotechnicalmultifunctioncrawler

SKID AND EQUIPMENT Mechanically welded steel frame mounted on a fixed rubber track (width 140 cm) 4 hydraulic stabilization feet Wireless remote moving control Integrated injection pump MOTORIZATION Perkins engine soundproofed 36 HP PERFORMANCES Motor 160 : Rotation speed 0 to 356 rpm, Maximum torque 92 DaN.m Motor 315 : Rotation speed 0 to 180 rpm, Maximum torque 180 DaN.m High performance : Rotation speed 0 to 491 rpm, Maximum torque 183 DaN.m Hydraulic hammer 250 joules / blow - 900 bpm Pull up force 1800 DaN Moving speed 0 to 4.6 km/h OTHER PERFORMANCES AVAILABLE ON REQUEST APPLICATIONS Drilling with auger, rotary bit and Down The Hole Hammer Rotary-percussion drilling thanks to the hydraulic hammer Conventional coring Penetration test DPSH / SPT (in option) DATA ACQUISITION (IN OPTION) ExploFOR® ApaDYN® APAFOR® 430 THE + Compact drilling rig, versatile, perfect for transport on standard trailer (total weight < 3500 Kg) Large speed and torque range thanks to the different range of motors offered and proportional distributors Versatile rigs able to perform coring, rotary or rotary‐percussion drilling operation thanks to its out‐the‐hole hammer Fully self‐sufficient thanks to its serial injection pump fitting Rotation head with injection swivel and floating shaft with double thread (2"3/8 IF and R38) for easy change from rotary to rotary‐ percussion Large speed and torque range thanks to the different range of motors offered and proportional distributors
