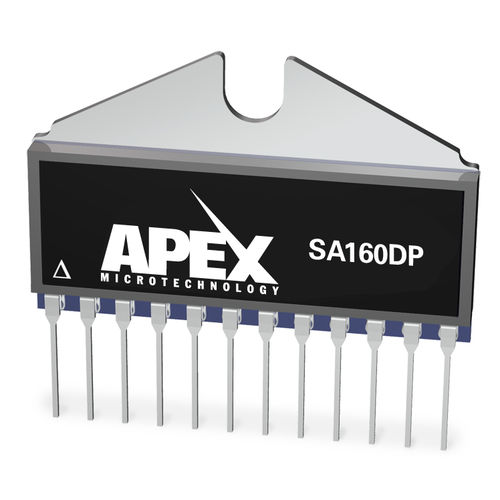

Signal amplifying integrated circuit SA160
currentswitchingClass D

signal amplifying integrated circuit
signal amplifying integrated circuit
Add to favorites
Compare this product


Characteristics

Type
current, signal
Secondary function
switching
Other characteristics
high-current, programmable, Class D, switching frequency
Voltage

80 V

Current

10 A, 20 A

Power

800 W, 1,100 W

Frequency

Min.: 45 kHz

Max.: 250 kHz

Description

The SA160DP and SA160DPA are low cost, complete H-bridge, Class D “switching” amplifiers for driving brush-type motors and reactive loads. These full-bridge amplifiers can operate on single supplies up to 80V while providing up to 10A continuous output current with the standard model SA160DP, and up to 14A continuous with the A Grade SA160DPA. As follow-on products to the Apex Microtechnology SA60 H-bridge motor driver, both the SA160DP/SA160DPA are designed with very low RDS(ON), a typical 140mΩ over the full -40°C to +85°C operating temperature range, resulting in nearly 50 percent less heat dissipation. Switching frequency for the SA160DP/SA160DPA can be internally generated and is programmable up to 125kHz using an external integrator capacitor. Both devices can also be controlled by external switching signals up to 250kHz. Simultaneous directional and amplitude control can be achieved using an external TTL-compatible PWM signal. Power delivery to the load is an impressive 800W with 97% output efficiency for the standard grade and up to 1.2kW with the SA160DPA. Housed in the same 12-pin PowerSIP package as the SA60, the SA160DP/SA160DPA are drop-in, pin compatible replacements.
