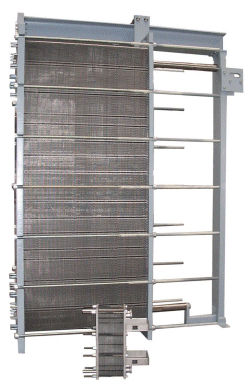

Gasketed-plate heat exchanger
max. 2 000 m³/h | SIGMAFIT-series
API Schmidt-Bretten GmbH & Co. KG
The SIGMAFIT distinguish itself with a computer based optimized residence time distribution. Thereby this line of products can be used without any restrictions to be used in applications, which require a homogeneous dwell time profile.
* All liquids, even those with fine suspended solids.
* Capacity up to 2000 m³/h.
* Hard and soft plate corrugation patterns in the herringbone design.
* Corrugation depth between 2.5 and 4 mm.
* The plates can be equipped either with the SIGMAFIX adhesive-free gasket system or with glued high performance gaskets.
* Wide range of choice in plate and gasket materials.
* Also available with the PTFE coated SIGMAFIX elastomer gasket, SIGMACOAT.
