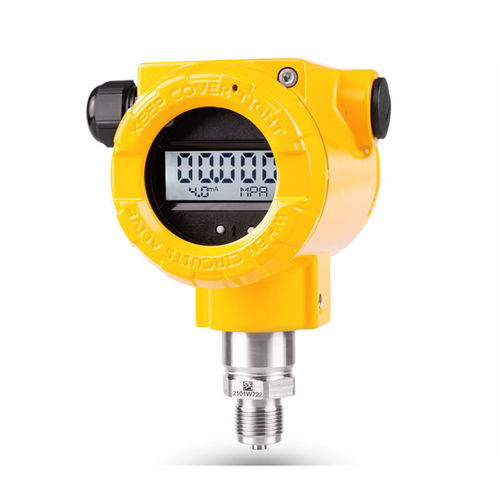

Smart pressure transmitter APC-2000ALW

relativesiliconpiezoresistive

The APCE - 2000ALW, manufactured by Aplisens®, is a smart pressure transmitter that has an active sensing function that can measure the gas, vapors and liquids through piezoresistant silicon sensor. Its diaphragm is designed in gold plate material that includes a programmable range, zero shift, characteristic and damping ratio with panel keys in a 0.75% accuracy, 4...20 niA 0...20 mA or 0...5 mA output signal + HART protocol. - 4...20 mA output signal + HART 5 / HART 7 protocol (special version: 0...20 mA or 0...5 mA output signal + HART 5 protocol) - Display with backlight - Programmable range, zero shift, characteristic and damping ratio with local panel keys - Safety version SIL2/SIL3 - Intrinsic safety certificate ATEX, IECEx, FM (USA, Canada) - Explosion proof certificate ATEX, IECEx, FM (USA, Canada) - Marine certificate – DNV, BV - Accuracy 0,075% (0,05%, 0,04% on request) - Gold plated diaphragm (Au) - MID (Measuring Instruments Directive) – certificate acc. to 2004/22/WE directive and OIML R140:2007 recommendations.
