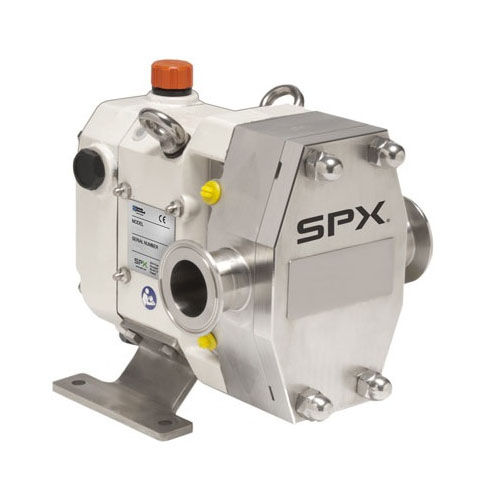

rotary lobe pump / for chemicals / for beverages / for dairy products
HL series APV



  • Media:

    for chemicals, for beverages, for dairy products, oil

  • Operation:


  • Type:

    rotary lobe

  • Domain:

    for the food and beverage industry, for the chemical industry, for hygienic applications, for the cosmetics industry, for the pharmaceutical industry

  • Other characteristics:

    with mechanical seals, lubricated, low-noise level, bi-directional, stainless steel, vertical, horizontal mount

  • Flow:

    2,000 l/min (528.3441 us gal/min)

  • Pressure:

    10 bar (145.038 psi)


Operational Features

- Smooth flow
- Gentle product handling
- Dry running ability with double seal
- Handles low and high viscosity products
- Simple maintenance
- Hygienic design
- Low sound level
- CIP capability standard
- Free draining pump housing
- Unique rotor attachment
- Robust construction
- Process flexibiltiy
- Single mechanical seals standard. Optional double mechanical seals also available
- Grease lubricated bearings for positive lubrication over speed, temperature

Installation Features

- Bi-directional flow
- Easy service and maintenance
- Horizontal or vertical mounting
- Easy to disassemble and reassemble
- 316L stainless steel pump body and cover
- Versatile 4-way mounting of gear case, including vertical alignment of ports

Product Benefiits

- Pumps with flushed double mechanical seals can run dry indefinitely
- Very low shear, product not damaged during pumping
- No internal rotor contact
- Large fluid cavities can pump liquids with large solids
- No cross-contamination of lubricating oil into product zone due to unique gear case design
- Pumps are energy efficient and easily cleaned, maintained and repaired
