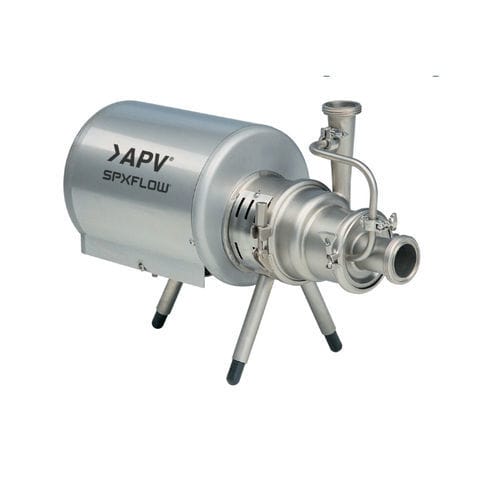

Beverage pump Ws+ series
for chemicalselectricself-priming

beverage pump
beverage pump
beverage pump
beverage pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, beverage
Operation
electric
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
for the chemical industry, for the pharmaceutical industry, for the food and beverage industry, for the cosmetics industry, sanitary
Material
stainless steel
Other characteristics
standard, low-noise
Flow

30 m³/h, 50 m³/h, 90 m³/h
(1,059.44 ft³/h, 1,765.73334 ft³/h, 3,178.32 ft³/h)

Pressure

6 bar, 8 bar, 13 bar
(87.023 psi, 116.03 psi, 188.549 psi)

Head

27 m, 40 m, 65 m
(88'06" , 131'02" , 213'03" )

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 95 °C
(203 °F)

Description

Reduce your noise level and benefit from the amazing development in self-priming. The self-priming Ws+ is designed to handle CIP (Clean In Place) return and other fluids with entrained air and foam. The unique design reduces the energy consumption and noise of traditional liquid ring pumps by using a high efficiency impeller that can be trimmed to match a specific duty. The Ws+ employs a built in eccentric air screw to form the liquid ring required for its self-priming capability. • 20-90% more efficient than other liquid rings due to improved fluid flow through pump. • Performance optimized by matching impeller size to duty. • Low noise level: Due to its hydraulic design the noise level of the Ws+ is significantly lower than traditional liquid ring pumps. • 3-A (optional) and EHEDG approved. • Interchangeable with W+ parts. Inventory is reduced by sharing common parts. • Less prone to damage. Small objects can pass through pump with minimal damage. The pump is approved by the EHEDG (European Hygienic Equipment & Design Group) as a hygienic pump and is also approved according to the American 3-A standard (optional). Consequently the pump can be used as a CIP as well as a first class hygienic product pump. The Ws+ series consist of 3 pump sizes. • Ws+ 20/15 • Ws+ 30/30 • Ws+ 44/50 At 50 Hz the Ws+ operates at a maximum pressure of 6.5 bar (94 psi) and a flow capacity of 90 m3/hour (396 GPM), while the values for a pump with a 60 Hz motor is 9.5 bar (138 psi) and 110 m3/hour (484 GPM).
