hazardous dust vacuum cleaner / electric / foundry / for the metallurgical industry
HYDROFILTER series ARFILTRAZIONI

{{requestButtons}}

Characteristics

  • Applications:

    hazardous dust

  • Power source:

    electric

  • Domain:

    foundry, for the metallurgical industry, metal machining

  • Other characteristics:

    compact, stainless steel, with HEPA filter, explosion-proof, heavy-duty, with self-cleaning filter, safety, stationary, with HEPA/ULPA filtration, for hazardous environments

  • Power:

    Min.: 1,500 W

    Max.: 4,000 W

  • Capacity:

    Min.: 2,000 m³ (70,629.3 ft³)

    Max.: 6,000 m³ (211,888 ft³)

Description

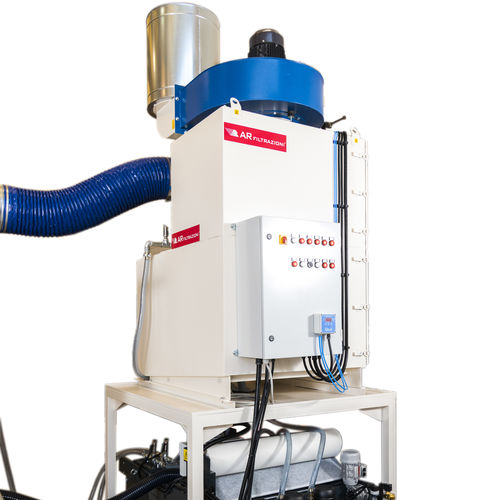

The HYDROFILTER series is used for extracting and purifying dust generated in dry and wet machining, which are particularly sticky and dense. It has been designed to answer the need for safety (aluminium and magnesium dust) and is ideal for purifying particles of different granulometries by simply installing filters of differing filtration ratings.

Each air cleaner is equipped with a high (EPA) and very high (HEPA) efficiency filter stage, compliant with EN 1822, and suited for reducing micro-dust, micro-mist and fumes.

The equipment is fitted with a pre-filtration chamber for washing dust with a miniscrubber, equipped with a class IE3 low consumption motor with thermal cutout.

It can be used on a vast range of machine tools: lathes, machining centres, grinding machines, milling machines, laser cutting and marking machines, buffers and manual grinders.

Thanks to its high performance, the HYDROFILTER series is ideal for the semi-centralisation of multiple machine tools with the same characteristics.

TECHNICAL DATA:
Air flow rate [m3/h]: 2000 m3/h ÷ 6000 m3/h

Power [KW]: 1.5 KW ÷ 4 KW

Noise level [dB]: 72 dB ÷ 80 dB

Weight [Kg]: 220 Kg ÷ 400 Kg

Efficiency: EN 779 – 95 % (0,4 µ) ÷ EN 1822 - 99,995% (0.15 µ) High-very high efficiency

Plus: Can be equipped with: active carbon cell safety dievice for fire prevention liquid cleaner
