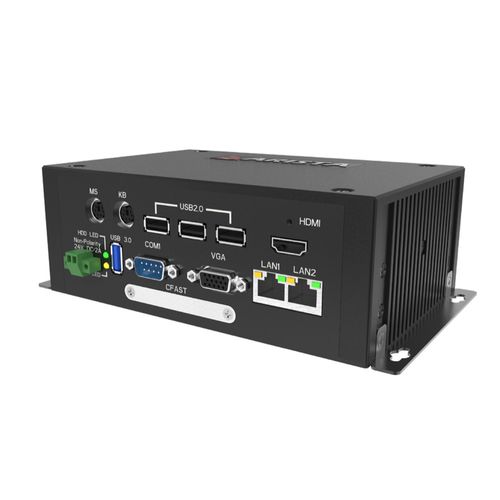

Box computer MicroBox-7824B-E02

Intel® Atom E3845Intel® Celeron J1900RS-232

Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU Up to 8GB DDR3 SO-DIMM 2.5" HDD, SSD, SATA DOM, CFast Storage Option Dual Gigabit Ethernet VGA + HDMI Dual Display Ports 1 x RS-232/422/485 BIOS Selectable 1 x USB 3.0, 3 x USB 2.0/ 1 x USB 3.0, 6 x USB 2.0 (A00) 24VDC Operating Input Voltage Line out, Mic in (A00) System - 　 CPU - Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU - Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU Chipset - Bay Trail - Bay Trail Memory - Up to 8GB DDR3 SO-DIMM - Up to 8GB DDR3 SO-DIMM Video Controller - Intel Gen7 Intel Graphics DX 11, OGL3.2 - Intel Gen7 Intel Graphics DX 11, OGL3.2 Video Interface - VGA & HDMI - VGA & HDMI Storage Option - SATA DOM, 2.5" HDD, 2.5" SSD, CFast Card - SATA DOM, 2.5" HDD, 2.5" SSD, CFast Card Compact Flash - N/A - N/A Keyboard/Mouse - USB / PS2 - USB Audio - N/A - Line Out, Mic In Watchdog Timer - YES - YES Remote Boot - ThinManager Ready, PXE - ThinManager Ready, PXE Expansion Slot - Mini PCIe x 2 - Mini PCIe x 2 I/O Communication - 　 USB Port - 1 x USB 3.0, 3 x USB 2.0 - 1 x USB 3.0, 6 x USB 2.0 Serial Port - 1 x RS-232/422/485 BIOS Selectable - 1 x RS-232/422/485 BIOS Selectable IEEE 1394 - N/A - N/A LAN - 2 x Gigabit - 2 x Gigabit Parallel - N/A - N/A GPIO - N/A - N/A Smart Battery - 　 External Smart Battery - N/A - N/A OS Support - 　 OS Support - Windows 7 & up - Windows 7 & up Power / Thermal Specs - 　 Power Requirement (Max) - 24VDC / 0.7A - 24VDC / 0.7A Power Consumption (Max) - 17 W - 17 W Recommended Power Supply - 24 W - 24 W Heat Dissipation - 58 BTU/hr - 58 BTU/hr
