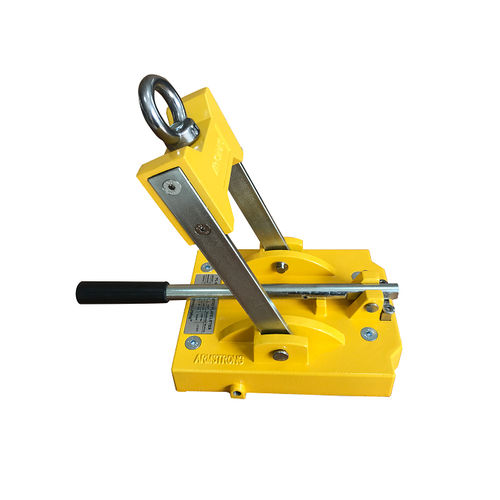

Permanent magnet magnetic plate lifter PL-660A

for thin sheet metal

Descriptions Armstrong LiftMag™ PL-A permanent magnetic plate lifter is a great improvement from our previous PL lifters designed and made for holding, carrying and releasing flat ferrous parts without any electrical power supply. They attract ferrous parts by lowering or raising their Release Handles to touch or keep away from load surfaces. The Release Handle was uniquely designed to achieve easy "One-Hand" operation. Armstrong LiftMag™ has Limited 1-year Warranty for PL-A series lifting magnets. Features •Breakaway force of 1,980 lbs, Tested at 3" Flat Clean Ground Mild Steel Plate •For Safety Factor 3:1, max rated lifting cpcty of 660 lbs; For Safety Factor 2:1, max rated lifting cpct of 990 lbs •Easy release mechanism using one hand, leaving no scratches on plate surface •Sturdy and Durable •Lift Horizontally or Vertically •Lift thick or thin plates •For large thin plates, multiple units can be connected by a spreader beam to form a lifting system that only requires 1-person to operate. •Designed and manufactured in accordance to ASME B30.20. and RoHS Compliant
