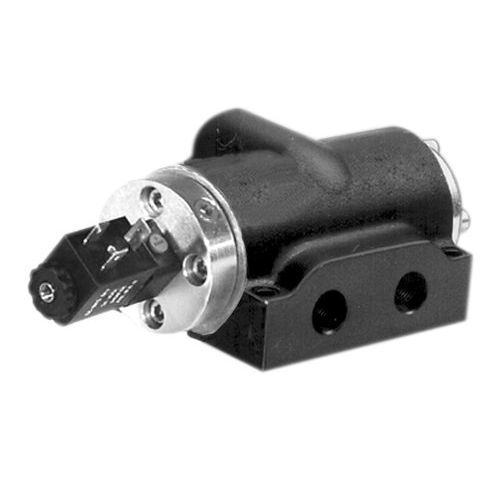

Spool pneumatic directional control valve K series
solenoid-operated4/2-way4/3-way

spool pneumatic directional control valve
spool pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
solenoid-operated
Ports/positions
4/2-way, 4/3-way
Other characteristics
aluminum

Description

The K Series pneumatic valve is manufactured from a durable and longlasting sand cast aluminum body, and features Buna N standard seals which help to extend the valve's lifespan. If the device is for high temperature applications, then viton seals can be ordered. The valve is a two- and three-position directional control valve fitted with five-port and four-way operation options, and comes with seven different actuator styles including manual, pedal and electric. The spool utilized in this valve is made from aluminum, while the 3/8" and 1/2" models feature slides anodized for increased durability using PTFE aluminum sleeves. The 3/4" and 1" models are fitted with brass sleeves. The 3/4" and 1/2" models also feature a standard solenoid override feature, and all models are fitted with an external solenoid supply port that allows for vacuum and low pressure operations. It is advised to consult the factory for supply connection information, and remote solenoid supply can be achieved by removing the end cap and rotating the gasket 90 degrees.
