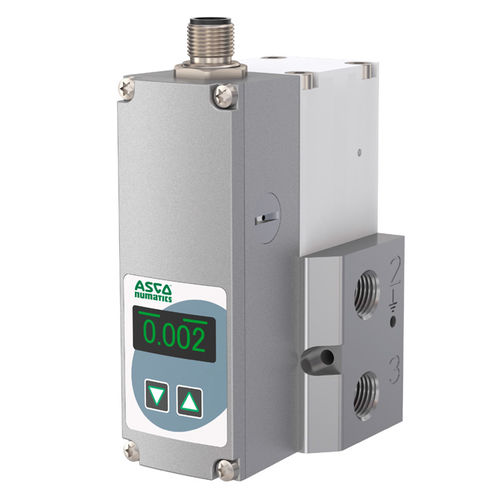

The AVENTICS Series 617 Sentronic LP (Low Power) is a family of highly efficient and cost-effective proportional valves with digital control that is ideal for pressure regulation requirements. It offers a small footprint and easy-to-use modular design. Valve control loop parameters can be optimized for a specific application using complementary Data Acquisition Software (DaS) and a PC connection. The valve offers low power consumption (<4 W), has a quick response time and includes integrated IO-Link communication capabilities.
Specifications
Function3 way - 3/2 Normally Closed
Valve ActuationProportional
Body MaterialAluminum
Voltage24 VDC
Frequency50/60 Hz
MediaAir, Inert Gases, Natural Gas; Oxygen
Operation EnvironmentIndoor
Port TypeG ISO228/1-G BSPP, NPTF, Flange
Standard & RegulationsCE, EAC, IP65
Features
Solenoid air pilot actuation
Last pressure held on loss of power
Digital communication and control
Easy change of control parameters with Data Acquisition Software
Optional display for rapid setup and configuration
Integrated IO–Link communication capabilities
