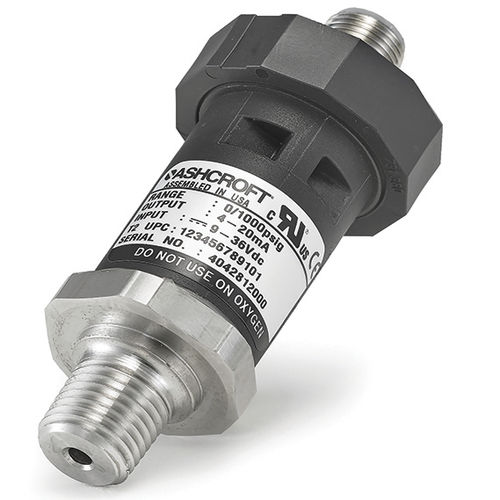

Relative pressure transducer T2

thin-filmanalog5 VDC

The Ashcroft® T2 general purpose industrial pressure transducer is specifically engineered to stand up to high shock, vibration and pressure cycling. The T2 provides excellent temperature performance, while the thin film sensor enables long-term stability and durability. An ideal choice for remote pressure measurement. Key Features: +/- 0.25% of span static accuracy (BFSL) at reference temprature All stainless steel wetted material Highly configurable; wide selection of pressure connections and electrical terminations Voltage and 4-20mA output options High EMI/RFI immunity rating UL/cUL and CE approved RoHS compliant Applications: Industrial and OEM Applications: Refrigeration Equipment Presses Machine Tools Pneumatics Pump Control Process Applications: Process Automation Compressor Control Pneumatics Pump Control Wetted Material Diaphragm: 17-4PH Stainless steel Process Connection: 304 Stainless steel Non-Wetted Materials Housing: 20% Glass Reinforced Nylon, Fire retardant to UL94 V1 Total Error Band Accuracy ± 1.0% of span from -4 to 185°F (-20 to 85ºC) ± 1.5% Span from -40 to -4°F (-40 to -20ºC) & 185 to 257°F (85 to 125°C) Total Error Band Accuracy: includes the combined effects of non-linearity (Terminal Point Method), hysteresis, non-repeatability, temperature and zero offset and span setting errors
