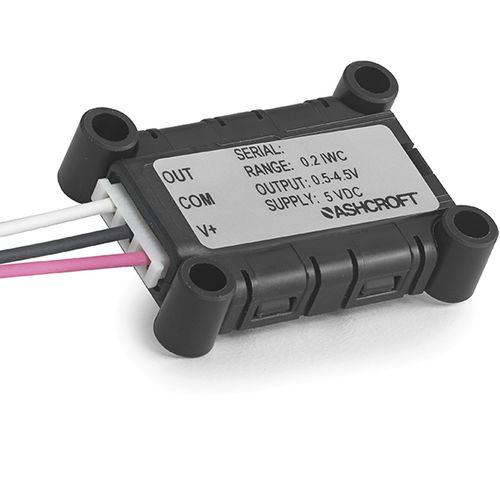

Differential pressure transducer AXLdp
membraneanalogratiometric

differential pressure transducer
differential pressure transducer
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
membrane
Output
analog, ratiometric
Material
titanium, aluminum
Protection level
IP20
Applications
process, for HVAC systems, for OEM
Other characteristics
compact, CE, low pressure, MEMS
Pressure range

11.6 psi

Precision

1 %, 2 %

Long-term stability

0.5 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 70 °C
(158 °F)

Description

The Ashcroft® AXLdp is perfect for OEM systems that require an ultra-low differential pressure sensor that can be PC board mounted. With the exclusive Ashcroft Si-Glas™ variable capacitance sensor, the budget-friendly AXLdp delivers highly sensitive and repeatable pressure measurements and provides exceptional long term stability. Key Features: UL94-V0 rated PBT case Calibrated ratiometric output Low voltage power requirement Through holes allow for easy mounting to PC boards Ranges available down to +/- 0.1 in. H2O Compact design Good overpressure protection CE Mark standard Applications: Process Applications: Flow Measurement Room Monitoring Energy Management HVAC and VAV Fume Hood Control Fan Tracking Pressure Connection 3mm tube stube Pressure Ranges Bidirectional: ±0.10 in H2O to ±10.00 in. H2O Unidirectional: 0.20 in. H2O to 20.00 in. H2O Wetted Material Media: Clean, dry air/gases compatible with Silicon, Glass, Gold, Titanium, Ceramic, Silicone Rubber, Aluminum and PBT. NOT FOR USE WITH LIQUIDS
