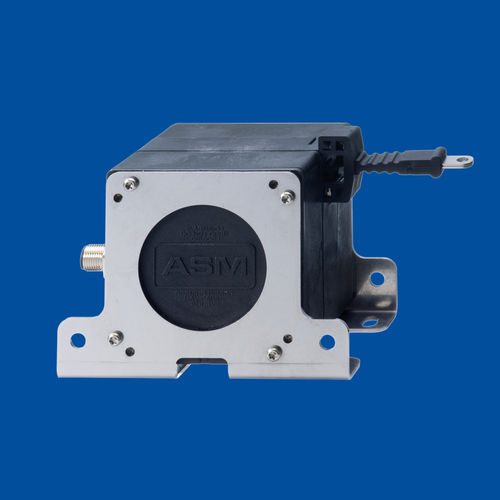

Tape position sensor positape® WB85
magneticanalog outputCANopen

tape position sensor
tape position sensor
Add to favorites
Compare this product


Characteristics

Type
tape
Technology
magnetic
Output signal
analog output, CANopen, with SSI interface
Protection class
IP67, IP69
Measuring range

6,000 mm
(236.22 in)

Linearity

0.1 %

Ambient temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Protection class up to IP67/69 Optional redundant version Specifications Output - Voltage 0.5... 10 V Voltage 0.5... 4.5 V Current 4 ... 20 mA, 3-wire technology Voltage or current output, programmable Voltage or current output, redundant SSI CANopen SAE J1939 Resolution - < 0.05 mm Sensing device - Magnetic absolute encoder Housing material - PBT and stainless steel Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick Protection class - IP67/IP69 Connection - Connector M12 Weight - max. 2 kg
