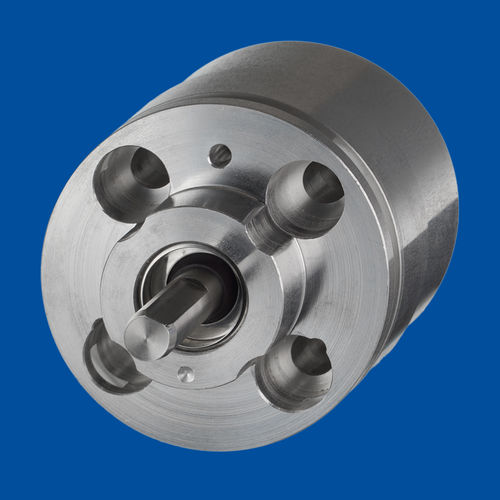

Absolute angle encoder posirot® PRAS5 / PRDS5
incrementalmagneticnon-contact

Add to favorites

Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type

absolute, incremental

Technology

magnetic

Construction

non-contact, solid-shaft

Output signal

analog, current output, SAE J1939, CANopen, with SSI interface

Material

stainless steel

Protection level

standard, IP67, IP69, IP68

Shaft diameter

10 mm
(0.39 in)

Resolution

Max.: 0.1 mm
(0 in)

Min.: 0.03 mm
(0 in)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Absolute magnetic angle sensor 0 to 360° in a flat housing Protection class up to IP67/IP69, IP68 as option Specifications Output - Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, redundant Incremental encoder SSI CANopen CANopen redundant SAE J1939 SAE J1939 redundant Measurement range - Analog: 0 ... 15° to 0 ... 360°(selectable in 15° increments) Incremental /SSI / CAN: 0 ... 360° Incremental: 1, 2, 3 ... 1024 pulses per revolution SSI: 12 bit / per revolution CAN: 0.05° max. Linearity - Analog: ±0.3 % f.s. (typical) Incremental /SSI / CAN: ±1° (typical) Repeatability - ±0.1° (typical) Housing material - Stainless steel EN 1.4404 (AISI 316L) Protection class - IP67/IP69 (with mating connector only) IP68 as option Connection - Connector M12, 5 pin Connector M12, 8 pin Cable output, standard length 2 m Weight - Approx. 500 g (without cable)
