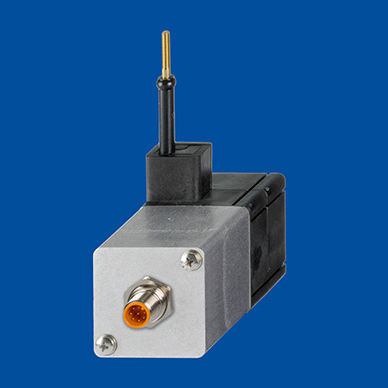

Draw-wire position sensor posiwire® WS10SG
potentiometermagneticoptical

draw-wire position sensor
draw-wire position sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Technology
potentiometer, magnetic, optical
Output signal
analog, CANopen, with SSI interface
Measurement object
metal
Protection class
IP65
Applications
industrial
Other characteristics
rugged, absolute, precision, incremental
Measuring range

2,000 mm
(78.74 in)

Linearity

0.1 %

Ambient temperature

Max.: 85 °C
(185 °F)

Min.: -20 °C
(-4 °F)

Description

Protection class IP56 Optional magnetic absolute encoder Specifications Output - Potentiometer 1 kΩ Voltage 0... 10 V, 0.5 … 10 V Current 4 ... 20 mA, 2 or 3 wire Voltage or current output, programmable (PMUV/PMUI) SSI CANopen SAE J1939 Incremental encoder Resolution - Analog: <0.002 % f.s. Incremental 10 pulses/mm, 25 pulses/mm SSI/CAN-Bus: up to 10 µm Sensing device - Precision potentiometer Optical encoder Magnetic absolute encoder Housing material - POM and aluminum Cable: stainless steel Protection class - IP65 (only with mating connector) Connection - Connector M12 Weight - Approx. 400 g
