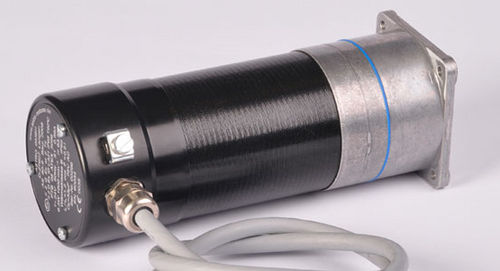

AC motor / synchronous / 24V / high-torque
AS80-6 ASTRO Motorengesellschaft

{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Type:

    synchronous

  • Voltage :

    24V

  • Other characteristics:

    high-torque, explosion-proof, ATEX

  • Torque:

    Max.: 0.062 Nm (0.0457 ft.lb)

    Min.: 0.027 Nm (0.0199 ft.lb)

  • Power:

    6.3 W, 6.6 W (0.009 hp)

  • Rotational speed:

    Max.: 1,200 rpm (7,539.82 rad.min-1)

    Min.: 0.75 rpm (4.71 rad.min-1)

Description

ASTRO's Explosion-proof motors have frequency of 50 or 60 Hz.The Gas Model is manufactured as per II 2 G Ex ec II T4 and the Dust model as per II 2 D Ex tD c A21 P65 T 90° C.For 3 D (dust) and 3 G (gas) model contact us.
