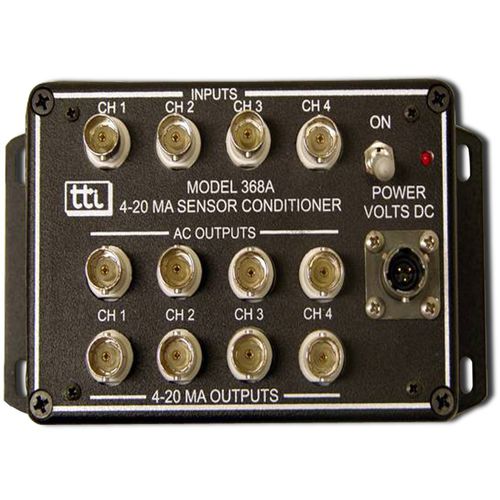

Multi-channel signal conditioner Trig-Tek™ 368A
for sensors

multi-channel signal conditioner
multi-channel signal conditioner
Add to favorites
Compare this product


Characteristics

Options
multi-channel
Applications
for sensors

Description

The Trig-Tek™ 368A Sensor Conditioner is designed to accept inputs from ICP- type sensors; outputs are proportional from 4 to 20 mA Product Information The Trig-Tek™ 368A provides an internal switch for each channel that selects the adjustable sensor “Curr” either “On” or “Off.” The 4 to 20 mA output current corresponds to 0 to 500 mVrms Full Scale (FS) engineering units (eu) with a 100 mV/ eu sensor. FS is adjusted by an internal gain potentiometer for 5 to 50 FS eu. The inputs and outputs are on BNC connectors. The 368A has a power input of 20 to 36 VDC at approximately 125 mA. The primary power has 500 V isolation from signal ground. Power is via a 3-Pin PT02A-8-3P. Connector pin A is plus power; B is return; and C is chassis ground. The mating connector is a PT06A-8-3S-SR. 10 to 18 VDC power can be supplied as an option at the time of order. Key Features • 4 channels • 100 mV/eu input sensitivity • 5 to 50 Full Scale (FS) engineering units (eu) (adjustable) • 2 to 5 mA sensor Curr • 4 to 20 mA outputs • FS AC output • Isolated primary power • BNC inputs and outputs • 20 to 36 VDC power
