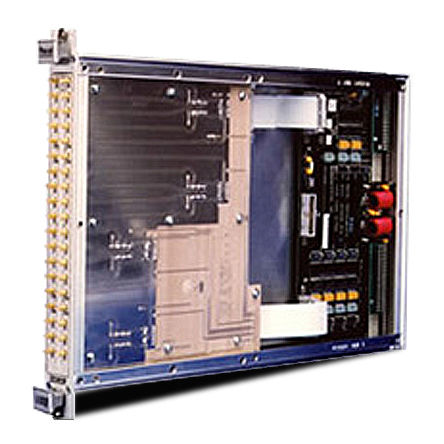

Relay switch module 1260-58

digitalRFhigh-speed

The Racal Instruments™ 1260-58 is a high-density switch module with four 1x8 coaxial trees. It is designed for high-frequency, 50 Ω signals, making it ideal for switching source or measurement signals in an ATE environment or modern communication system Product Information The 1260-58 is intended for use with func- tion/pulse generators, universal timer/counters, oscilloscopes, high-speed digital test units, and other instruments involving high- frequency or fast rise-times. This switch module has excellent AC per- formance, with a bandwidth greater than 1 GHz. All relays are bi-directional, making inputs and outputs interchangeable to meet different test requirements. Larger switching systems can be configur- ed by using external jumpers with easy- to-interface SMB connectors. This method configures large multiplexers as well as large matrices. MATURE The 1260-58 requires a Racal Instruments™ Option 01T to communicate with 1260-series modules. This option provides message-based operation for ease-of-use and register-based operation for maximum speeds. The 1260-series includes VXIplug&play support for frameworks based on Microsoft Win32® application programming interface, including drivers for LabWindows™/CVI and LabVIEW™ Key Features • Four 1x8 coaxial trees • 1 GHz bandwidth • Excellent crosstalk and isolation characteristics • Single-slot, C-size, VXIbus module • High-quality 50 Ω SMB coaxial interface connectors • Ideal for switching high-frequency signals in ATE systems
