Vibration monitoring system Trig-Tek™ 61R

positionmeasurementportable

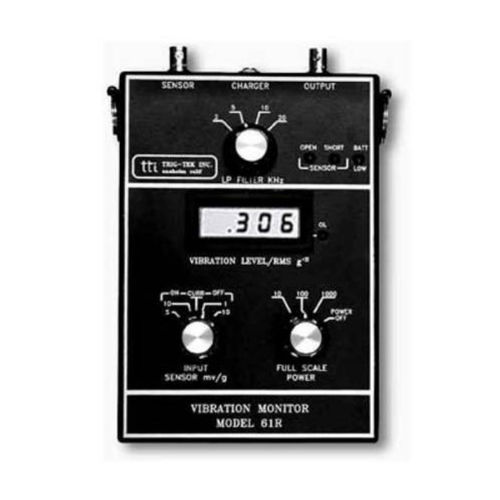

The Trig-Tek™ 61R Portable Vibration Monitor is intended for use in situations where a portable instrument is convenient or required. Product Information The Trig-Tek™ 61R will indicate accelera- tion using the input from an accelerometer. The 61R is supplied with a charger pack that operates from 115 VAC line to recharge the battery. The 61R is designed to operate with a sensor that has sensitivity of “5” or “10” mV/g with the current or sensitivity of “1” or “10” mV/g without the current. It has Full Scale (FS) ranges of “10,” “100,” or “1000” g RMS acceleration. It has sensor “Open” or “Short” LED indicators, and also an “Overload” LED. The “Batt Lo” LED alerts the operator when the battery needs recharging. A filter switch selects a “2,” “5,” “10,” or “20” position to provide selectable High- Pass and Low-Pass filtering. These are nominally as listed: • Position 2: 3 Hz HP, 2 kHz LP • Position 5: 3 Hz HP, 5000 Hz LP • Position 10: 3 Hz HP, 10,000 Hz LP • Position 20: 3 Hz HP, 20,000 Hz LP Special cutoffs can be set on special orders. Key Features • 3 Hz to 20 kHz frequency range • 10, 100, or 1000 g FS • Sensor detection • Overload detection
