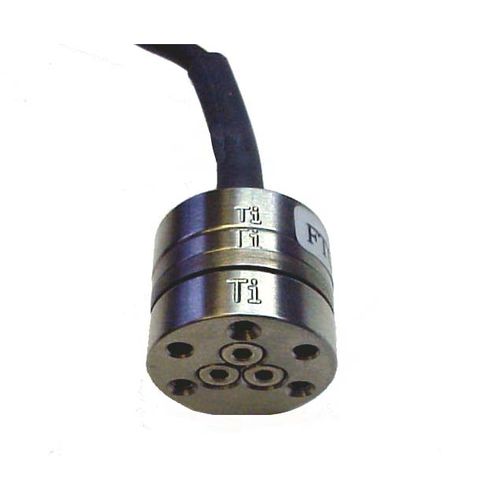

Force and torque sensor Nano17 Titanium

-Our Smallest 6-axis Sensor Now Available in a Titanium Version: The Nano17 Titanium fits into restricted spaces of research applications. -Non-Ferrous Materials: Titanium construction. -Very-Fine Resolution: Can resolve down to 0.149 gram-force. -Extremely-High Strength: EDM wire-cut from grade 5 titanium. Maximum allowable single-axis overload values are 4.9 to 19.6 times rated capacities. -High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion. Typical Applications -Biomechanical research -Measurements in highly magnetic environments Stiffness (Calculated) X-axis & Y-axis forces (Kx, Ky) - 4.8x106 N/m Z-axis force (Kz) - 6.6x106 N/m X-axis & Y-axis torque (Ktx, Kty) - 1.4x102 Nm/rad Z-axis torque (Ktz) - 2.2x102 Nm/rad Resonant Frequency Fx, Fy, Tz - 3000 Hz Fz, Tx, Ty - 3000 Hz Physical Specifications Weight* - 0.0101 kg Diameter* - 17 mm Height* - 14.5 mm
