Piston compressor LB series
airnitrogenelectrically-powered

piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air, nitrogen
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Applications
gas
Other characteristics
low-noise, high-pressure, heavy-duty
Pressure

300 bar
(4,351.13 psi)

Flow

Max.: 49.8 m³/h
(1,758.67 ft³/h)

Min.: 28.5 m³/h
(1,006.47 ft³/h)

Power

Max.: 15 kW
(20.39 hp)

Min.: 5.5 kW
(7.48 hp)

Description

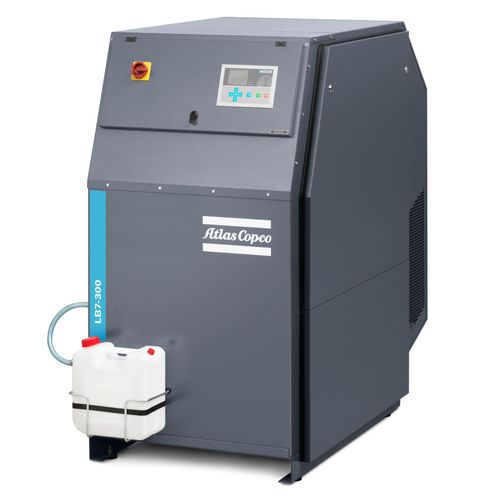

The LB 300 is a standalone booster for compressed air and nitrogen. However, it is also used in Atlas Copco’s nitrogen skid for either direct use of the bottling of top-quality nitrogen. Built to Atlas Copco standards with quality components, this heavy-duty booster is available in different power sizes with a capacity from 200 to 830 l/s. Choose from a range of models that provide between 7 and 20 hp with an intake pressure between 2 and 11 bars. In addition, the LB 300 booster has silent operation with noise levels as low as 70-75 dBa. Atlas Copco’s trademark low cost of ownership, reliability and ingenuity are reflected in the LB 300 booster. A quality booster Some air and industrial gas applications require extra high pressure. However, it would be inefficient to design the entire system to provide that high pressure if it is only needed some of the time or if most applications don’t need it at all. That’s why a booster is a valuable addition to a compressed air system: it provides that extra high pressure specifically when it is needed. And none is better than the LB 300 booster from Atlas Copco. It keeps your costs down, reliably delivers high-pressure air or nitrogen and is quiet, which means greater installation flexibility. Technical benefits Low cost of ownership The IE3 motor of the LB 300 and its self-tensioning V-belt offer high energy efficiency and low operating costs. No-wear piston rings and corrosion-proof cooler pipes reduce the need for maintenance.
