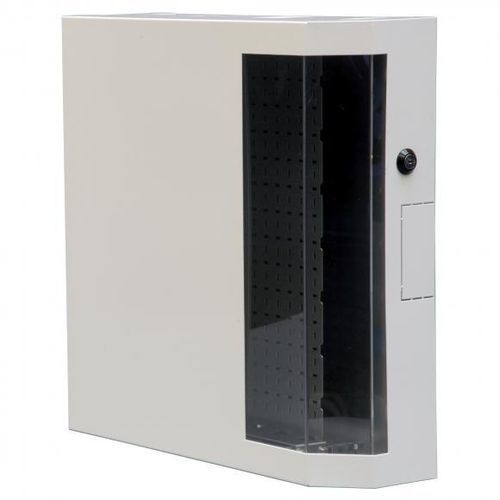

19" rack enclosure / built-in / wall-mount / galvanized steel
CMR series ATOS SAS

{{requestButtons}}

Characteristics

  • Construction:

    19" rack, built-in, wall-mount

  • Material:

    galvanized steel

  • Width:

    500 mm

  • Height:

    475 mm, 775 mm

  • Depth:

    140 mm, 275 mm

Description

ADVANTAGES

Space saving. Full access to the hardware. Optimal functionality in a very small footprint. Visibility of your active hardware. Design of the product and aesthetics of the installation. Structure equipotentiality. Wall hook of choice, for vertical or horizontal mounting.
DESCRIPTION

1 wall enclosure in galvanised steel
1 steel cover painted with RAL 7015 equipped with a smoked oculus and a keyed lock, 455E key
4 cable entries
2 pre-cutout cable entries

CMR 3:

1 3U 19" area
1 2U 19" area
1 1U modem shelf
CMR 6:

1 6U or 2 x 3U 19" area
OPTIONS

Possible equipment depending on model 3U or 6U: recessed strip, ventilation, CAD module, brush cable entry.
RANGES

19" Version
AREAS OF APPLICATION

Shops, liberal professions
Fibre drawer connection point
Vertical mounting of the switches
