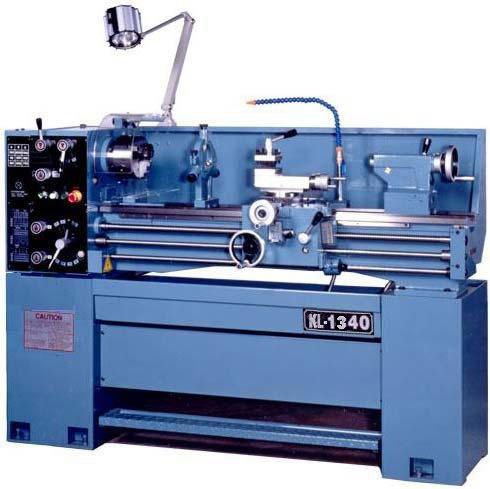

Conventional lathe
40" | KL1340
Atrump Machinery
* D1-4" camlock Spindle with 40 mm (1 9/16”) spindle bore
* Spindle Speeds: 80-2,000 RPM ( 9 steps)
* Swing over Bed: 330 mm (13")
* Swing over Cross Slide: 195 mm (7 5/8")
* Cross Slide Travel: 175 mm (6 7/8")
* Bed Length-Longitudinal Travel: 1000 mm (40")
* Spindle Horsepower: 3 HP
* Hardened and ground bed ways
* Hardened and ground gears in headstock
* Precision taper rollers bearing
* Rapid foot-operated brake
* Oil bath headstock, gearbox and apron lubrication
* Spindle Speeds: 80-2,000 RPM ( 9 steps)
* Swing over Bed: 330 mm (13")
* Swing over Cross Slide: 195 mm (7 5/8")
* Cross Slide Travel: 175 mm (6 7/8")
* Bed Length-Longitudinal Travel: 1000 mm (40")
* Spindle Horsepower: 3 HP
* Hardened and ground bed ways
* Hardened and ground gears in headstock
* Precision taper rollers bearing
* Rapid foot-operated brake
* Oil bath headstock, gearbox and apron lubrication
