storage tank / oil / cylindrical / horizontal
DC ATTSU TERMICA S.L.

{{requestButtons}}

Characteristics

  • Product applications:

    oil

  • Type:

    cylindrical

  • Function:

    storage

  • Other characteristics:

    horizontal

Description

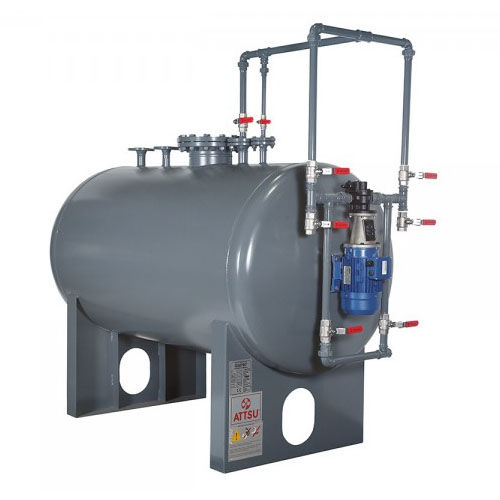

Thermal oil storage tank, cylindrical-horizontal, to accommodate the volume of oil contained in the installation.

Thermal oil storage tank, cylindrical-horizontal, to accommodate the volume of oil contained in the installation.

Tank constructed according to AD-MERKBLÄTER code with the following materials: standard Klöpper-type bottoms of suitable thickness, steel rod of P265GH which forms the cylindrical body of the tank, support legs with steel plate S235 JR, pipes A106b, flanges DIN-2633 PN -16 and finishing with anti-caloric paint.

It incorporates a gear pump with electric motor and a by-pass of pipe, with the isolation valves suitable to carry out all the maneuver of filling and emptying that requires the installation.
