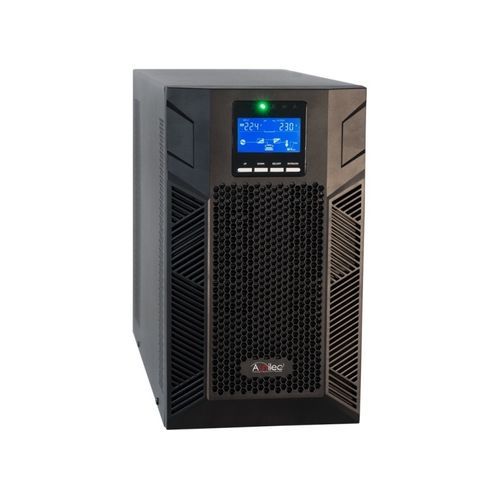

The IRIS+ is designed for healthcare and IT server applications. The multifunction LCD graphical display shows an estimation of the remaining battery backup time.
Specifications
- On-line “double conversion” technology (VFI)
- DSP (Digital Signal Processor) technology
- Internal static and manual bypass breaker
- Input Power Factor up to 0.99
- Wide input voltage range
- Up to 4 units in parallel
- Battery (DC) cold start
- Common or separate battery in parallel mode
- Charging current 1-10A
- Adjustable battery voltage (16/18/20 batteries)
- ECO-mode for energy saving
- Site wiring fault indication
- Self testing when UPS startup
- Intelligent management through RS485, USB and DB9
- 2 years warranty (electronics)
- Options: SNMP adapter, relay card (dry contacts), central monitoring card external maintenance bypass, additional / external battery packs, IRIS+ 6/10kVA version (3/1)
Up to 4 IRIS+ UPS systems can be connected in parallel to get maximum power capacity. Only one battery is necessary with the parallel redundancy mode.
Made in France
