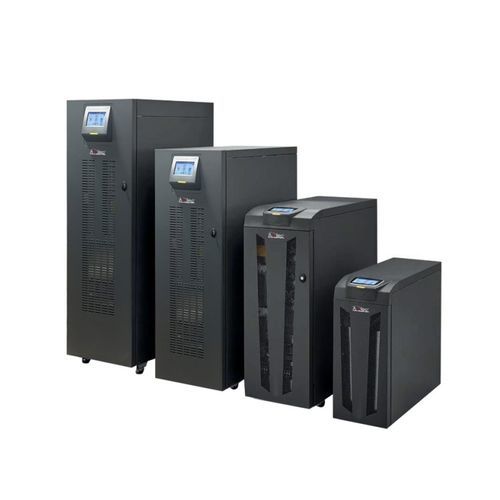

On-line UPS Multi Plus

industrialEco mode

The Multi Plus series is ideal for the protection of IT systems, telecommunication systems, IT networks and critical systems in general. With the help of cutting-edge technologies we have designed three-level inverters ensuring a high efficiency, up to 96.5%. These technology solutions allow to save over 50% of the energy dissipated every year, compared with a similar marketed product having a 92% efficiency. The exceptional efficiency value allows you to recover your initial investment in less than 3 years of operation. Specifications - The input stage features ensure a power factor close to 1 and a low current distortion without having to add cumber-some and expensive filters. - Output power having a power factor of 0.9, providing an amount of active power up to 15% greater than a normal commercial UPS - On Line, EMERGENCY POWER SUPPLY, Smart Active and Stand By Off - Frequency converter mode. - Cold Start, allowing to switch on the UPS even when power supply is not available. - Possibility to connect a temperature sensor for external battery cabinets, for recharge voltage compensation. - Additional battery chargers, to optimise the charging time. - Optional double supply network input. - Advanced multi-platform communication, for all the operating systems and network environments: supervision and shut-down software UPSmon5 included. - Compatible with PowerNetGuard for remote support service. - Serial RS232 or USB port. - REPO Remote Emergency Power Off, allowing to switch off the UPS through a remote emergency button. - Input for the connection of an external manual by-pass auxiliary contact. Made in France
