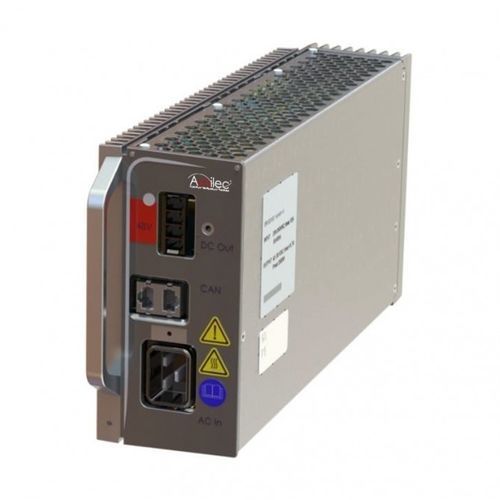

DC current converter MHE AUPUS C

convection-cooled

Designed for industrial and telecom applications The MHE rectifier utilizes Aunilec’s long experience and latest technology on high performance industrial power supplies. MHE rectifiers are designed to meet demanding requirements of utility, industrial, rail and telecom applications with high efficiency and reliability requirements. MHE rectifiers are convection cooled and requires no fans. Rated output power is 2000 W in 48 V – 220 V output versions and 1500 W in 24 V version. Rectifier input is single phase, range 85-300 VAC. Specifications - Efficiency up to 97 % - Convection cooled – No Fans - MTBF 1 800 000 h @ 25oC, Telcordia SR-332 - Output models 24, 48, 60, 110, 125, 220 VDC - 2000 W output power, 24 VDC 1500 W - Lacquered PCB for rail and metro applications - Nominal Input voltage 100-250 VAC, range 85-300 VAC - Soft-start generator input feature - Active load current sharing - Internal over temperature protection - Digital communication over CAN bus VIDI controller - Flexible design with full front cabling Made in France
