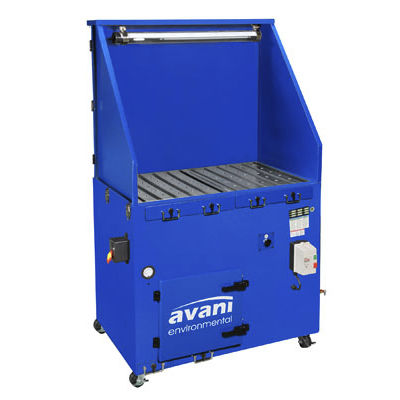

Welding downdraft table SDT-1.5

for plasma cutting

The SDT 1.5 downdraft table shows versatility through design featuring available table accessories. This table features a 1.5 hp motor, reverse jet pulse cleaning and a differential pressure gauge. This table is a great choice for plasma processes with heavy smoke. It with the fume arm addition it utilizes a two-phase filtration system. Standard Features: High Efficiency Re-usable Filter Cartridge Heavy Gauge Powder Coated Steel Accepts 5/8" Jig Fixtures Manual Reverse Jet Pulse Cleaning UL Approved Control Panel Easy Access Filter Doors 2 Electrical Outlets Differential Pressure Gauges Optional Features: Explosion Proof Light Exhaust 80% back draft and 20% downdraft Explosion Proof Vents Different Filter Media Silencers: inlet and outlet Rotary Air Lock Welding machine shelf Gas tank shelf Fume arm addition Customized Colors Specification SDT-1.5: Nominal Air Flow: 1100 CFM Motor: 1.5 HP TEFC NEMA, Aluminum Impeller / 60 HZ / 1 Ph Compressed Air Requirement: 90 PSI Dimensions: 32"x51"x78" Weight: 882 lbs
