Explosion-proof CCTV camera
II 2 GD Ex d IIC T6, IP68 Avex CCTV Pte

EXPLOSION-PROOF & HAZARDOUS AREA CCTV PTZ CAMERA STATION WITH INTEGRATED OPTICS PACKAGE (IOP) AND IR ILLUMINATOR - STAINLESS STEEL

Stainless Steel 316L or 304 with choice of electro-polished or corrosion resistant paint finish
Certified to ATEX Ex d IIC T6 (ATEX Directive 94/9/EC)
Fully Integrated Receiver, Pan/Tilt, Enclosure, Wiper System, Integrated Optics Package (IOP) and LED (100 mtrs) or Laser (350 mtrs) IR Illuminator
Protocol : Pelco D & P and Vicon selectable
Choice of 18X, 23X, 26X, 35X & 36X Sony/Hitachi Zoom Camera modules
Pan Rotation : 360° Continuous
Tilt Rotation : Unobstructed +90° ~ -90°
Pan / Tilt Speed : 0.1°/S ~ 25°/S
OSD Menu
Weather Resistant to IP68 (1.2 Mtrs) & NEMA 6 & 6P Standards
Designed for ease of installation and minimal maintenance
2 meters 6 core composite cable lead supplied with unit. Other lengths available upon request
Sunshields included
Optional auto-heater

THE BEST JUST GOT BETTER! – NOW WITH LED OR LASER IR ILLUMINATOR

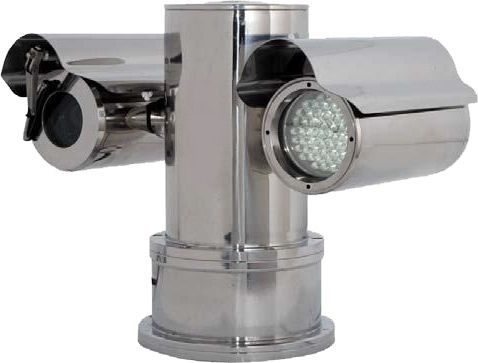

The AXIPTZ-5IR is an improved and innovative hazardous area explosion proof PTZ camera station which combines pan/tilt, enclosure, telemetry receiver, IR Illuminator, wiper system and camera into one fully integrated easy to install and maintain unit. No external wiring between pan/tilt and both housings.

Standard supply of the AXIPTZ-5IR includes one 6 core composite cable of 2 meters length and cable nut as well as two sunshields. The AXIPTZ-5IR incorporates Pelco D/P and Vicon protocols and various baud rates for easy integration with most controllers. The camera station can be either base or wall mounted with optional wall mount bracket.
