Explosion proof CCTV camera
ATEX II 2 GD Ex d IIC T6, IP68
Avex CCTV Pte

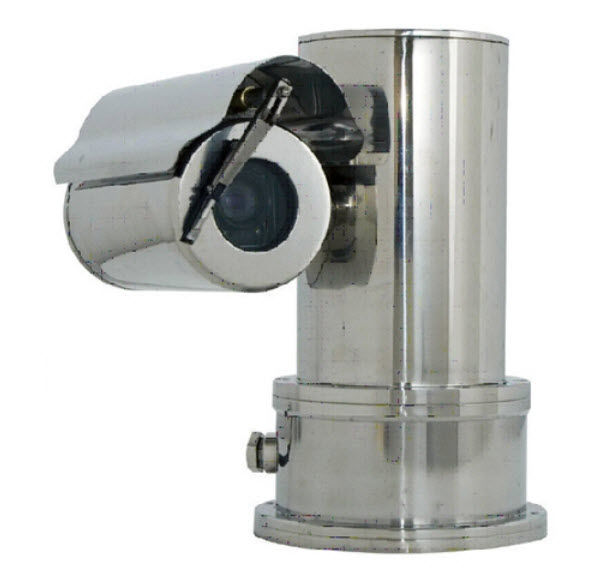

EXPLOSION-PROOF & HAZARDOUS AREA CCTV PTZ CAMERA STATION WITH INTEGRATED OPTICS PACKAGE (IOP) - STAINLESS STEEL
Stainless Steel 316L or 304 with choice of electro-polished or corrosion resistant paint finish
Certified to ATEX Ex d IIC T6 (ATEX Directive 94/9/EC)
Fully Integrated Receiver, Pan/Tilt, Enclosure, Wiper System and Integrated Optics Package (IOP)
Protocol : Pelco D & P and Vicon selectable
Choice of 18X, 23X, 26X, 35X & 36X Sony/Hitachi Zoom Camera modules
Pan Rotation : 360° Continuous
Tilt Rotation : Unobstructed +90° ~ -90°
Pan / Tilt Speed : 0.1°/S ~ 25°/S
OSD Menu
Weather Resistant to IP68 (1.2 Mtrs) & NEMA 6 & 6P Standards
Designed for ease of installation and minimal maintenance
2 meters 6 core composite cable lead supplied with unit. Other lengths available upon request
Sunshield included
Optional auto-heater
THE COMPLETE ALL-IN-ONE PACKAGE
The AXIPTZ-5 is an improved and innovative explosion proof PTZ camera station which combines pan/tilt, enclosure, telemetry receiver, wiper system and camera into one fully integrated easy to install and maintain unit. No external wiring between pan/tilt and camera housing.
Standard supply of the AXIPTZ-5 includes one 6 core composite cable of 2 meters length and cable nut as well as sunshield. The AXIPTZ-5 incorporates Pelco D/P and Vicon protocols and various baud rates for easy integration with most controllers. The camera station can be either base or wall mounted with optional wall mount bracket.
Stainless Steel 316L or 304 with choice of electro-polished or corrosion resistant paint finish
Certified to ATEX Ex d IIC T6 (ATEX Directive 94/9/EC)
Fully Integrated Receiver, Pan/Tilt, Enclosure, Wiper System and Integrated Optics Package (IOP)
Protocol : Pelco D & P and Vicon selectable
Choice of 18X, 23X, 26X, 35X & 36X Sony/Hitachi Zoom Camera modules
Pan Rotation : 360° Continuous
Tilt Rotation : Unobstructed +90° ~ -90°
Pan / Tilt Speed : 0.1°/S ~ 25°/S
OSD Menu
Weather Resistant to IP68 (1.2 Mtrs) & NEMA 6 & 6P Standards
Designed for ease of installation and minimal maintenance
2 meters 6 core composite cable lead supplied with unit. Other lengths available upon request
Sunshield included
Optional auto-heater
THE COMPLETE ALL-IN-ONE PACKAGE
The AXIPTZ-5 is an improved and innovative explosion proof PTZ camera station which combines pan/tilt, enclosure, telemetry receiver, wiper system and camera into one fully integrated easy to install and maintain unit. No external wiring between pan/tilt and camera housing.
Standard supply of the AXIPTZ-5 includes one 6 core composite cable of 2 meters length and cable nut as well as sunshield. The AXIPTZ-5 incorporates Pelco D/P and Vicon protocols and various baud rates for easy integration with most controllers. The camera station can be either base or wall mounted with optional wall mount bracket.
