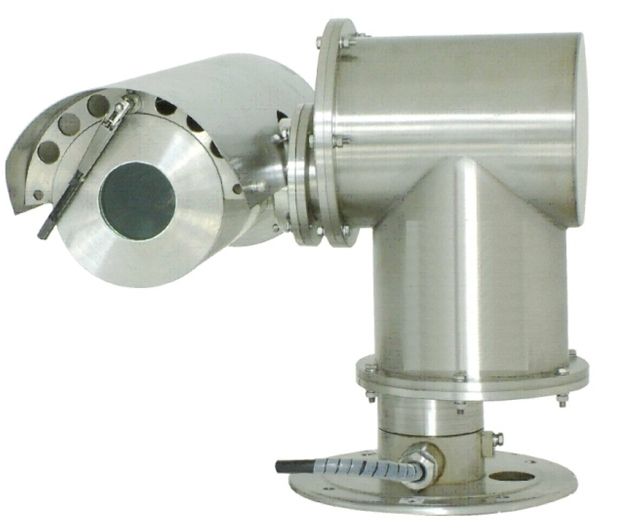

EXPLOSION-PROOF & HAZARDOUS AREA CCTV PTZ CAMERA STATION WITH OR WITHOUT INTEGRATED OPTICS PACKAGE (IOP) - STAINLESS STEEL
Stainless Steel 316L or 304 with choice of electro-polished or corrosion resistant paint finish
Certified to ATEX EExd IIC T6 (ATEX Directive 94/9/EC)
Fully Integrated Pan/Tilt, Camera Housing and Wiper System with no external cabling between Housing and Pan/Tilt
Used with External Telemetry Receiver housed in AXCR-1 Explosion proof Enclosure or Optional Internal Telemetry Receiver housed in camera housing
Factory installed 18X, 23X, 26X, 35X & 36X Sony/Hitachi Zoom Camera modules or customer supplied cameras
Pan Rotation : 300° (350° viewing) or 350° (360° viewing)
Tilt Rotation : Unobstructed +60° ~ -60° or +90° ~ -90°
Pan / Tilt Speed : 3.8°/S
Weather Resistant to IP66 & NEMA 4X Standards
Designed for ease of installation and minimal maintenance
2 meters of 15 core composite cable leads supplied with unit. Other lengths available upon request.
Sunshield included
Optional wall mount bracket & auto-heater
RUGGED * DURABLE * HIGH PERFORMANCE
The AXNPTZ-3 was designed to offer customers with a flexible product to meet a wide range of different project and application requirements. The AXNPTZ-3 explosion proof camera station combines pan/tilt, camera housing, wiper system and optional telemetry receiver into one fully integrated easy to install and maintain unit. There is no external wiring between the pan/tilt and camera housing.
Stainless Steel 316L or 304 with choice of electro-polished or corrosion resistant paint finish
Certified to ATEX EExd IIC T6 (ATEX Directive 94/9/EC)
Fully Integrated Pan/Tilt, Camera Housing and Wiper System with no external cabling between Housing and Pan/Tilt
Used with External Telemetry Receiver housed in AXCR-1 Explosion proof Enclosure or Optional Internal Telemetry Receiver housed in camera housing
Factory installed 18X, 23X, 26X, 35X & 36X Sony/Hitachi Zoom Camera modules or customer supplied cameras
Pan Rotation : 300° (350° viewing) or 350° (360° viewing)
Tilt Rotation : Unobstructed +60° ~ -60° or +90° ~ -90°
Pan / Tilt Speed : 3.8°/S
Weather Resistant to IP66 & NEMA 4X Standards
Designed for ease of installation and minimal maintenance
2 meters of 15 core composite cable leads supplied with unit. Other lengths available upon request.
Sunshield included
Optional wall mount bracket & auto-heater
RUGGED * DURABLE * HIGH PERFORMANCE
The AXNPTZ-3 was designed to offer customers with a flexible product to meet a wide range of different project and application requirements. The AXNPTZ-3 explosion proof camera station combines pan/tilt, camera housing, wiper system and optional telemetry receiver into one fully integrated easy to install and maintain unit. There is no external wiring between the pan/tilt and camera housing.
