Explosion proof CCTV camera
Avex CCTV Pte
EXPLOSION-PROOF & HAZARDOUS AREA CCTV DOME PTZ CAMERA STATION WITH INTEGRATED OPTICS PACKAGE (IOP) - STAINLESS STEEL
Stainless Steel 316L or 304 with Electro polished or corrosion proof paint finish for maximum corrosion protection
Certified to EEx d IIB + H2 T6 (ATEX Directive 94/9/EC)
Fully Integrated Receiver, Pan/Tilt, Enclosure and Integrated Optics Package (IOP)
Protocol : Pelco D & P and Vicon selectable
Choice of 18X, 23X, 26X, 35X & 36X Sony/Hitachi Zoom Camera modules
Pan Rotation : 360° Continuous
Tilt Rotation : -90° ~ +30° (120°)
Pan / Tilt Speed : 0.1°/S ~ 60°/S
Supports Advanced OSD Menu
Weather Resistant to IP67 & NEMA 4X Standards
Designed for ease of installation and minimal maintenance
2 meters 6 core composite cable lead supplied with unit. Other lengths available upon request.
RUGGED * DURABLE * HIGH PERFORMANCE

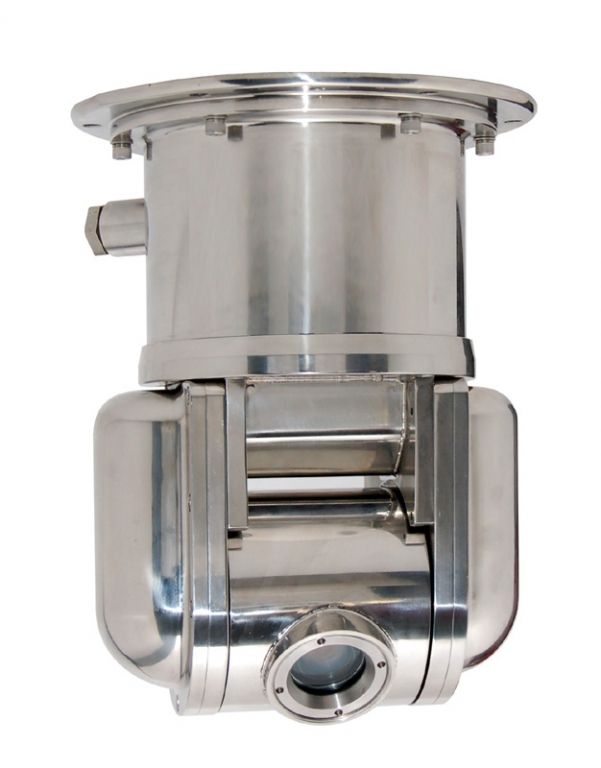

The AXDPTZ-7 is an improved and innovative explosion proof dome PTZ camera station which combines pan/tilt, enclosure, telemetry receiver and camera into one fully integrated easy to install and maintain unit. No external wiring between pan/tilt and camera housing.
Standard supply of the AXDPTZ-7 includes one 6 core composite cable of 2 meters length and cable nut. The AXDPTZ-7 incorporates Pelco D/P and Vicon protocols and various baud rates for easy integration with most controllers. The camera station can be mounted hanging or upright via SB7 stand bracket.
