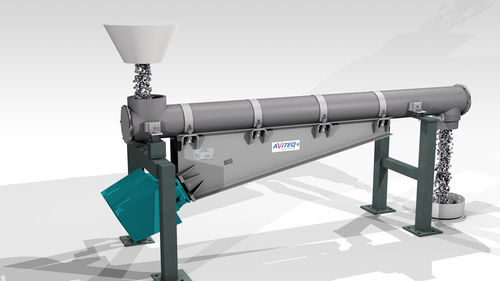

Tubular conveyor

vibratingoverheadfor the food industry

AViTEQ-Tubular Vibrating feeders are suitable for handling and dosing of free flowing bulk material with a max. grain size of 1/3 of the tube diameter. Especially when the conveying process has to be dust free, tubular vibrating feeders are an ideal solution due to their closed design, which also provides high standards of hygiene and cleanliness. For feeding poisonous and hazardous substances, vibrating tube conveyors / feeders are the industries preferred solution. Advantages & benefits Wide range of applications: • Dustproof • Food suitable construction • Driven by magnetic vibrator/s or unbalanced motor/s • Long distances possible due to serial connection of feeders possible (conveyor lines) • Multiple drive possible (magnetic vibrators) • Overhead drive position possible • Variants available for reversing machines • Separate replacement of tube body or drive traverse (clamp version) • Made of mild steel or stainless steel Construction Vibrating Tubalare feeders are characterized by their simple design. The main components are: • Feeding tube with a drive beam, either welded or connected by clamping saddle • Drive (magnetic vibrator/s or unbalanced motor/s) • Inlet / outlet nozzles • Elastically supports • Flexible sealing Selection The sizing is dependent on: • Product to transport • Throughput • Required geometry • Possible installation • Key figures • Length: up to 9,000 mm for single machines, theoretically unlimited for conveyor lines • Diameters: 219 mm, 273 mm, 324 mm, 406 mm as standard, other diameters possible • Throughput: up to approximately 100 m3/h • Drives: magnetic vibrator or unbalanced motor/s
