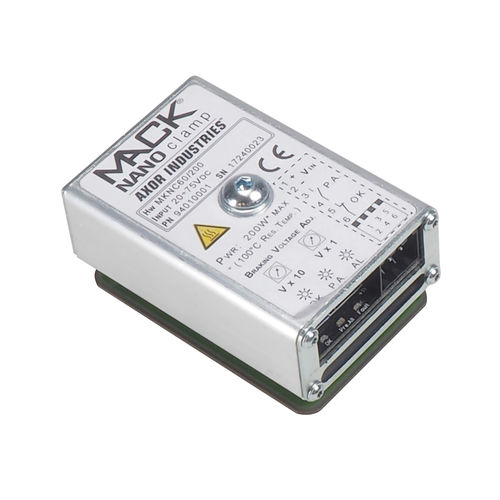

Digital brake control module Mack Nano Clamp (MKNC)

Digital Braking Module Universal braking module designed to be a constant, reliable protection of dc voltage power supplies against high return energy from the motor during braking or deceleration. DESCRIPTION The power generated by a servo motor during deceleration and braking returns to the drive and supply line. Many bridge rectifier, switching or similar supply systems cannot accept this return energy. Mack Nano Clamp is designed to absorbe this return energy, thereby protecting the system upline. FEATURES Ultra compact module with built-in high power resistor Suitable for any servo system with dc supply Continuous braking power up to 100W 1 module can protect the dc supply of several drives No power supply needed 3 LED’s for 6 status signals 2 Digital outputs for threshold warning and alarm block 2 Trimmers for braking voltage threshold adjustments Continuous monitoring of braking power Numbered single turn trimmers for easy presetting of standard machinery
